WindBine TM Prototype Development to Hardened Design

This is a quick look at the prototypes that we have developed over a period of nearly 20 years hardening the WindBine TM concept by many storms giving many lessons and improvements!  As is said, "If it were easy, someone else would have already done it!"

First 1/3 scale WindBine TM prototype that confirmed the development direction!

Images from Spring of 2005!



Then we took a big leap into full scale based on a 10 ft diameter prop sweep!

WindBine TM 1 first step of installation!

Installed and ready for testing!



WindBine TM 2, first with 'Rogallo' style sheet wings!



WindBine TM 3 with many improvements including a proper Graphical User Interface using the Peak HMI platform for automatic functionality!





Present WindBine TM (WindBine TM 4) of Inventor!

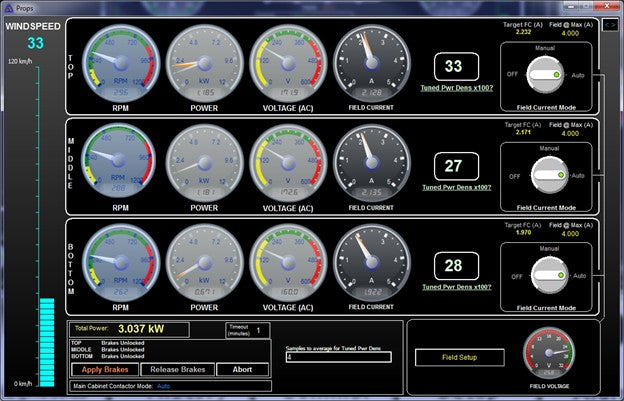

Vast improvements including Auto-run and Graphical User Interface using www.hmisys.com Peak HMI platform!
