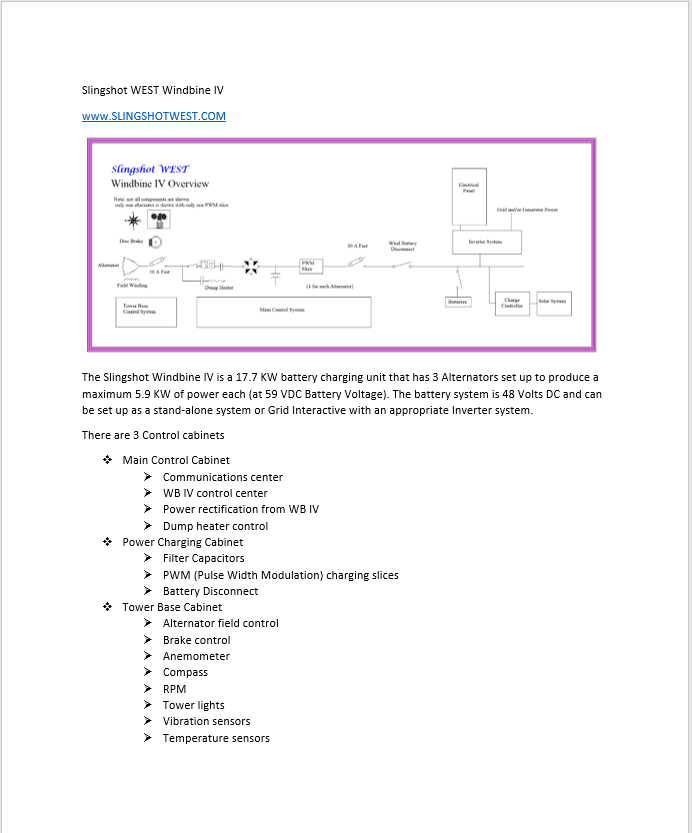

Inventor's WindBine TM Electrical Layout

This is the Inventor's WindBine TM Electrical Layout document that he used to Monitor, Control and Acquire Power from his WindBine TM Machine!  Notice that this arrangement has made use of the 6 kW alternators and custom Charge Controllers.  The alternate system the Inventor has tested and worked with is a power conversion system that uses one Step Down Transformer per alternator that substitutes for the need of the Charge Controller.  This is because of the fact that the alternators used by the Inventor are Field Controllable and therefore via calibration of the Field Control of the alternators versus wind speed, or versus Prop RPM in this case, the Props can be controlled to run at best RPM for the wind speed or Prop RPM and provide best efficiency and extraction of power from the wind!

Also included in this Product is the WindBine TM Topology document and the WindBine TM Schematic document that the Inventor used to utilize his WindBine TM to charge, along with the excellent combination of solar, the battery bank for his off-grid shop and house!
