WindBine TM Alternator Angle Mount - Part #ALTANG

This WindBine TM Part includes the drawing and electronic file for the Alternator Angle Mount that the Inventor used to mount the alternators of his WindBine TM!  This part will mount either the 6 kW or the 13 kW alternator versions!

Purchase full drawing that includes the electronic file!

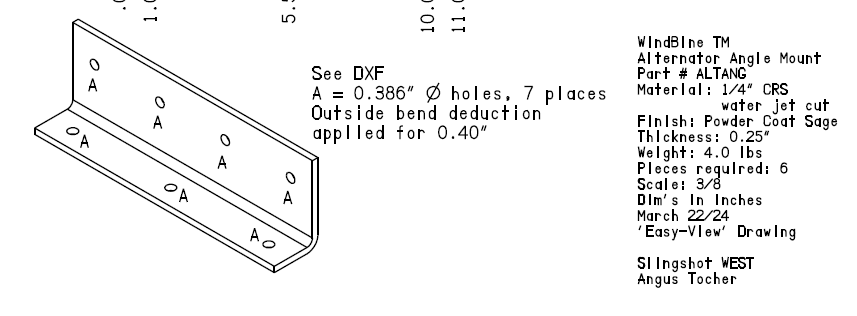

WindBine TM
Alternator Angle Mount
Part # ALTANG
Material: 1/4" CRS
          water jet cut
Finish: Powder Coat Sage
Thickness: 0.25"
Weight: 4.0 lbs
Pieces required: 6
Scale: 3/8
Dim's in inches
March 22/24
'Easy-View' Drawing

Slingshot WEST
Angus Tocher
