WindBine TM Anemometer Mount Plate - Part #ANEMMP

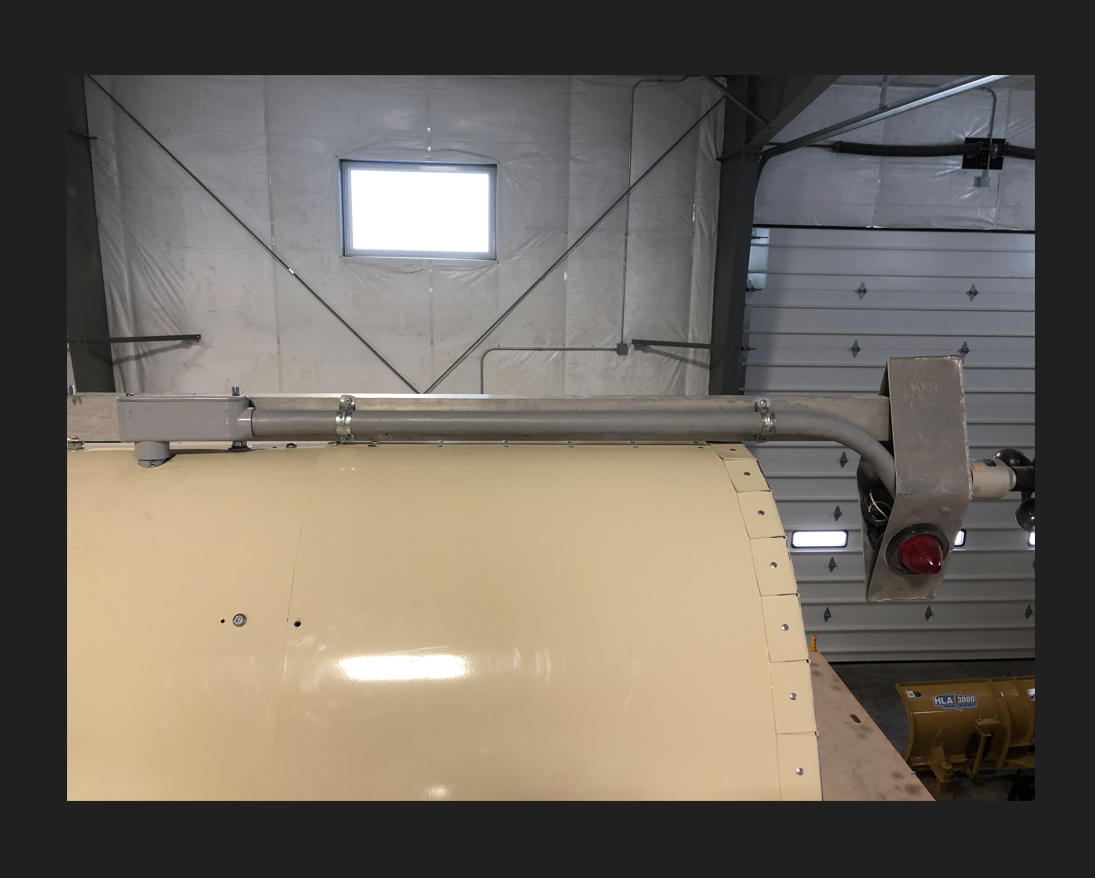

This WindBine TM Part includes the drawing and electronic file for the Anemometer Mount that the Inventor used this part to weld on top of the Beacon Light Shroud and mount the Enercorp #4.3519.00.141 Anemometer (wind speed sensor) on his WindBine TM machine!  Parts such as this are all listed in the Parts, Components and Fasteners Guide that is available in the Assembly Instruction Collection on the Slingshot WEST Store!

Purchase full drawing that includes the electronic file!

WindBine TM
Anemometer Mount Plate
Part # ANEMMP
Material: 11 gauge 5052 Aluminum
Finish: None
Thickness: 0.091" wall
Weight:  0.23 lbs
Pieces required: 1
Scale: 3/8
Dim's in inches
Oct 8/17
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
