WindBine TM Bearing Collar Angle Mount - Part #CLRANG

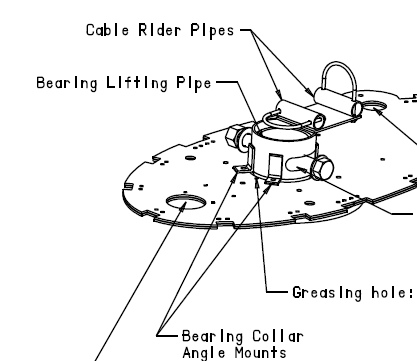

This WindBine TM Part includes the drawing and electronic file for the Bearing Collar Angle Mount that the Inventor used to attach the Bearing Pipe Collar to the Top Plates! The Bearing Pipe Collar carries the Cable Rider Mount Plate and also accommodates the Lifting Bolt that the Inventor uses to move his WindBine TM from the Trailer to the base during installation! - see the Assembly Drawings and the Assembly Guide!

Purchase full drawing that includes the electronic file!

WindBine TM
Bearing Collar Angle Mount
(Water or laserjet cut)
Part # CLRANG
Material: 1/4" Mild Steel Plate
Finish: None
Thickness: 1/4"
Weight:  0.49 lbs
Pieces required: 4
Scale: 3/4
Dim's in inches
Feb 5/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
