WindBine TM Bearing Lifting Pipe - Part #BRLFT

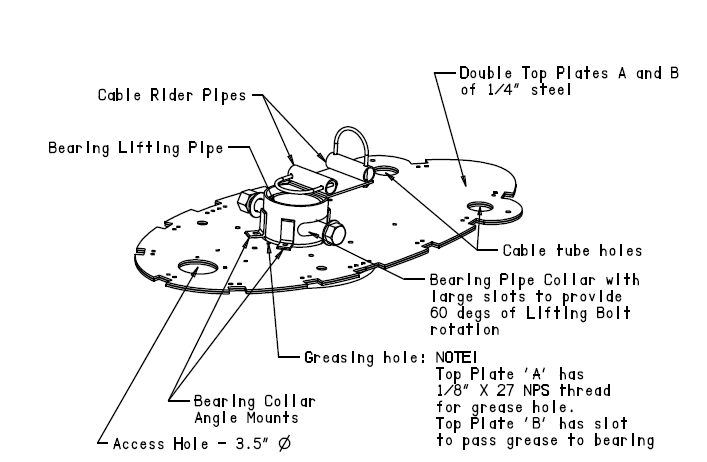

This WindBine TM Part includes the drawing for the Bearing Lifting Pipe that the Inventor used for his WindBine TM to accommodate the Lifting Bolt to lift the WindBine TM from the Trailer onto the Base or back again!

Purchase full drawing!

WindBine TM
Bearing Lifting Pipe
Part # BRLFT
Material: #6 Steel Pipe
           Min Sched 80
Finish: None
Thickness: Min 0.432" wall
Weight:  18.6 lbs
Pieces required: 1
Scale: 1/4
Dim's in inches
Sept 19/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
