WindBine TM Bearing Lifting Pipe Welding Diagram - #BRLFTWELD

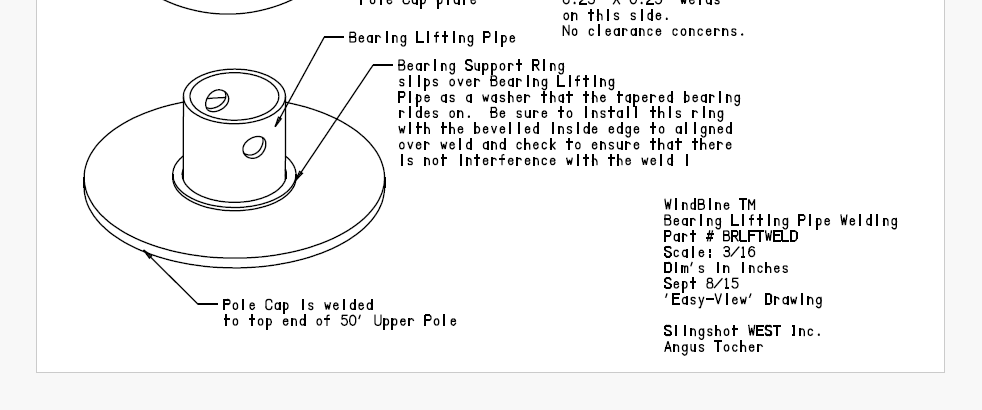

This WindBine TM drawing includes the assembly and welding instructions that the Inventor used for his WindBine TM machine to join the Bearing Lifting Pipe to the Pole Cap!  The Inventor used welds on both sides of the Pole Cap welded to the Bearing Lifting Pipe to ensure strength for lifting on and off of the Trailer and the WindBine TM Base!

See the Assembly Drawings and Assembly Guide!

Purchase full drawing!

WindBine TM
Bearing Lifting Pipe Welding
Part # BRLFTWELD
Scale: 3/16
Dim's in inches
Sept 8/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
