WindBine TM Bearing Pipe Collar - Part #BRCLR

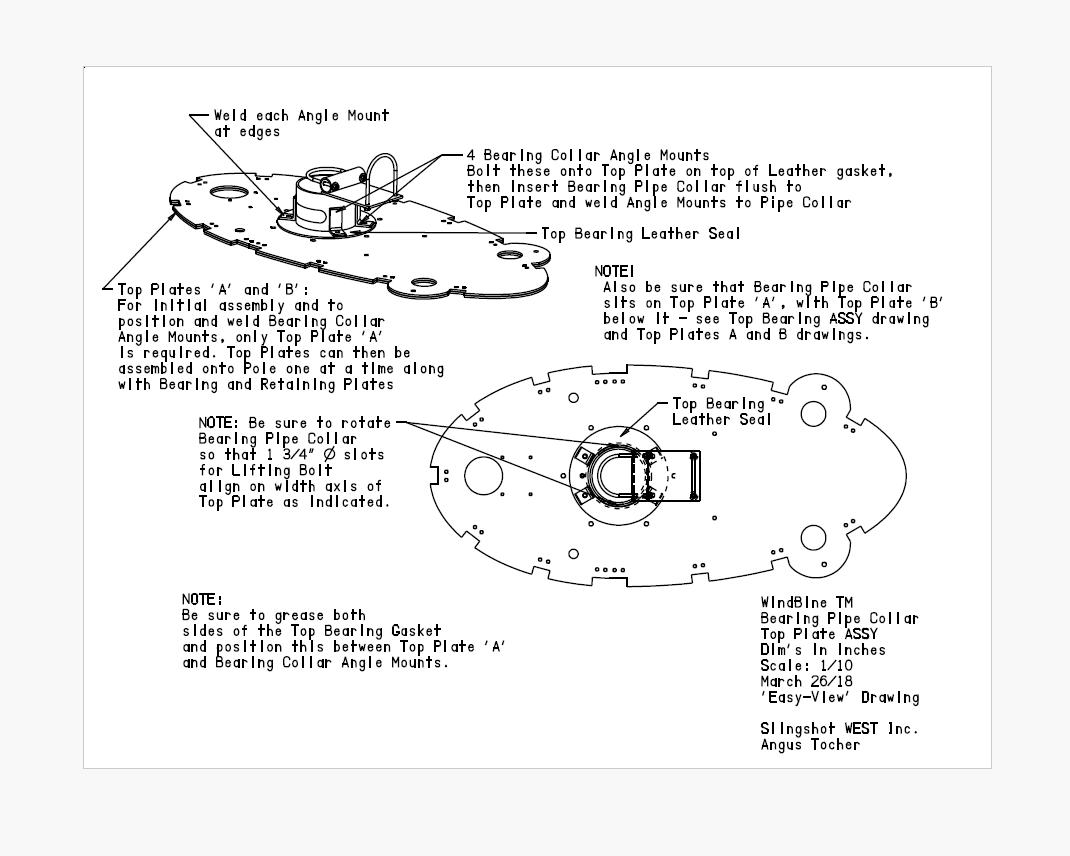

This WindBine TM Part includes the drawing for the Bearing Pipe Collar that the Inventor also used for his WindBine TM to accommodate the Lifting Bolt to lift the WindBine TM from the Trailer onto the Base or back again!  The slot is to provide an ample amount of swing of the body of the WindBine TM during these operations! See Assembly Drawings and Assembly Guide!

Purchase full drawing!

WindBine TM
Bearing Pipe Collar
Part # BRCLR
Material: Steel Tubing from 'Team Tube'
          Calgary - OD 7.5" ID 7.0"

Finish: None
Thickness: Wall 0.250" wall
Weight:  7.4 lbs
Pieces required: 1
Scale: 1/3
Dim's in inches
October 9/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
