    WindBine TM Bearing Pipe Collar Top Plate ASSY

    WindBine TM Bearing Pipe Collar Top Plate ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

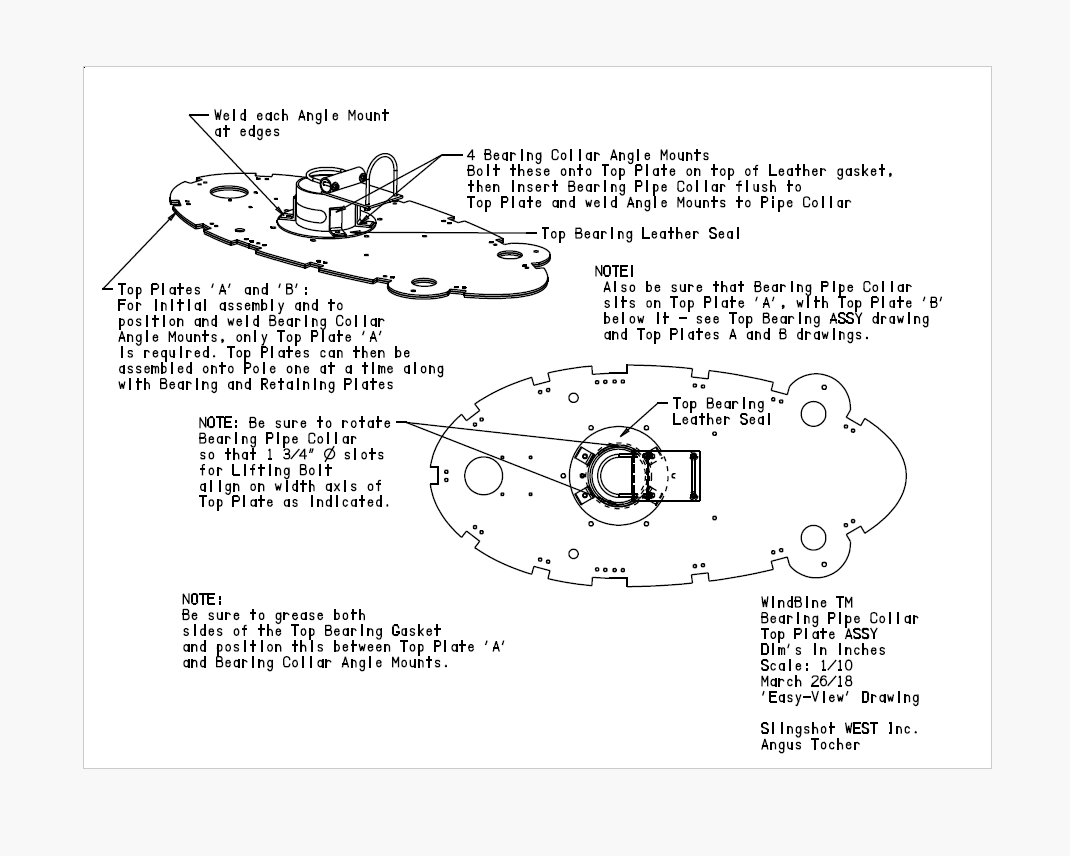

    This WindBine TM Assembly Drawing illustrates the attachment of the Bearing Pipe Collar onto the Top Plates with the Bearing Collar Angle Mounts and Gasket!

    Purchase full drawing!

    WindBine TM
    Bearing Pipe Collar
    Top Plate ASSY
    Dim's in inches
    Scale: 1/10
    March 26/18
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
