WindBine TM Bearing Race Retaining Plates - Part #RETPLT

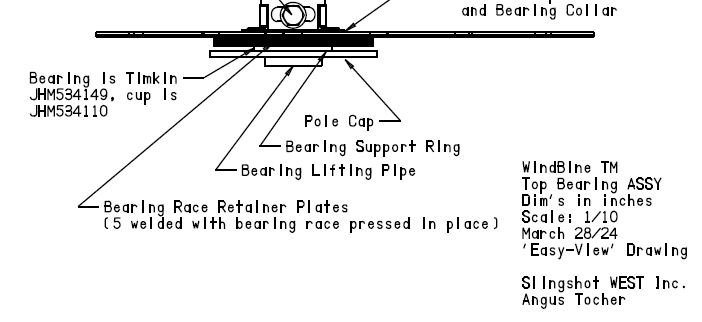

This WindBine TM Part includes the drawing and electronic file for the Bearing Race Retaining Plates that the Inventor used to press fit the bearing race of the large Top Bearing that the body of the WindBine TM rotates on to direct it into the oncoming wind!

Purchase full drawing that includes the electronic file!

WindBine TM
Bearing Race Retaining Plates
Part # RETPLT
Material: 1/4" mild steel plate
Finish: None
Thickness: 1/4"
Weight:  14.5 lbs
Pieces required: 5
Scale: 1/5
Dim's in inches
Oct 9/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
