WindBine TM Bearing Race Retaining Plates Welding Diagram - #W1

This WindBine TM drawing includes the assembly instructions for the main Bearing Race Retaining Plates that mount above the Top Fuselage Plates of the Inventor's WindBine TM machine!  The Main Bearing that supports the weight of the Inventor's WindBine TM machine is mounted above the Top Fuselage Plates and allows the WindBine TM to freely move in the direction of the oncoming wind!

See the Assembly Drawings and Assembly Guide!

Purchase full drawing!

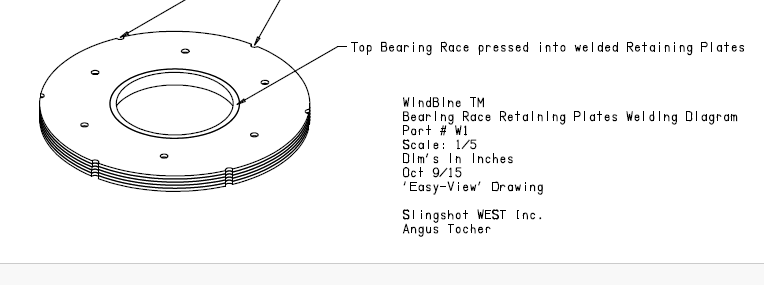

WindBine TM
Bearing Race Retaining Plates Welding Diagram
Part # W1
Scale: 1/5
Dim's in inches
Oct 9/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
