WindBine TM Top Bearing Support Ring - Part #TBSUPRNG

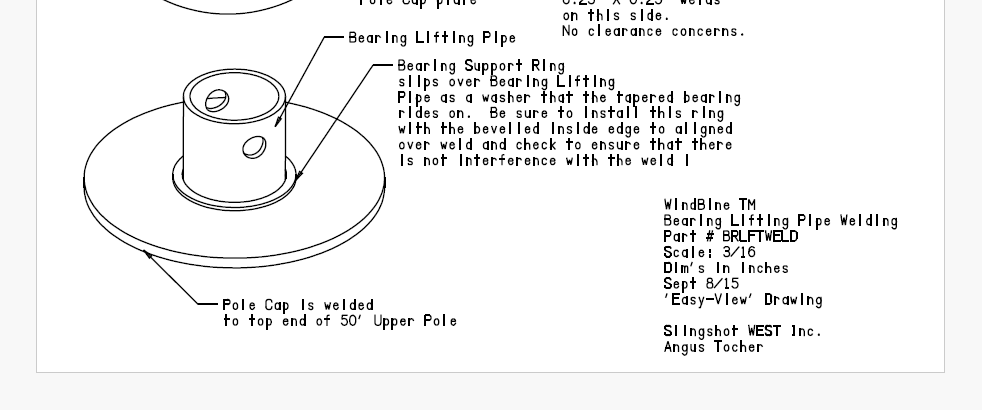

This WindBine TM Part includes the drawing and electronic file for the Top Bearing Support Ring! This is a part the Inventor used to support the large Top Bearing and provides clearance for the weld of the Bearing Lifting Pipe to the Pole Cap - see the Assembly Drawings!

Purchase full drawing that includes the electronic file!

WindBine TM
Top Bearing Support Ring
Part # TBSUPRNG
Material: 1/4" mild steel
Finish: None
Thickness: 1/4"
Weight:  0.90 lbs
Pieces required: 1
Scale: 1/3
Dim's in inches
Aug 26/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
