WindBine TM Belt Tension Bracket - Part #BELTTENS

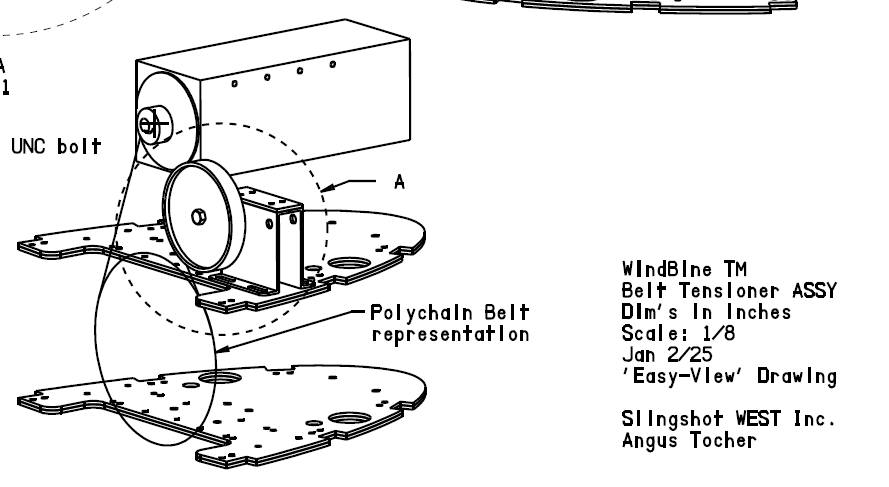

This WindBine TM Part includes the drawing and electronic file for the Belt Tension Bracket that the Inventor used to take up the slack on the un-tensioned side of the alternator belt! This works with an 8" idler pulley for smooth and quiet operation!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Belt Tension Bracket Angle
Part # NBELTTENS
Material: 3/16" CRS
Finish: Powder Coat Sage
Thickness: 0.1875"
Weight: 2.75 lbs
Pieces required: 6
Scale: 1/4"
Dim's in inches
Jan 1/25
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
