WindBine TM Belt Tension Bracket Plate - Part #BELTTENSPLT

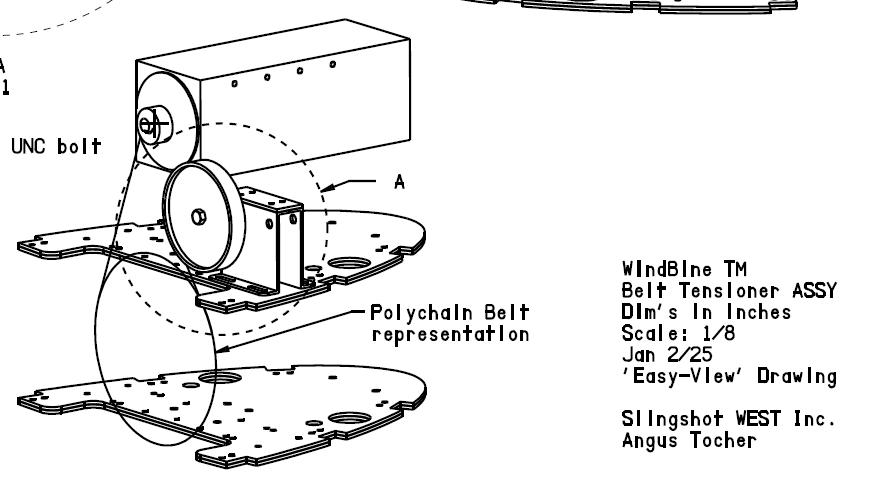

This WindBine TM Part includes the drawing and electronic file for the Belt Tension Bracket Plate that the Inventor used to join the two Belt Tension Bracket Angle halves that support the idler pulley for smooth operation of the WindBine TM 'prop' to alternator gearing!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
New Belt Tension
Bracket Plate
Part # BELTTENSPLT
Material: 1/4" 5052 Alum
Finish: None
Thickness: 0.25"
Weight: 0.37 lbs
Pieces required: 3
Scale: 1/2"
Dim's in inches
April 15/19
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
