WindBine TM Bracket for Sealmaster Bearing - Part #BRSEALM

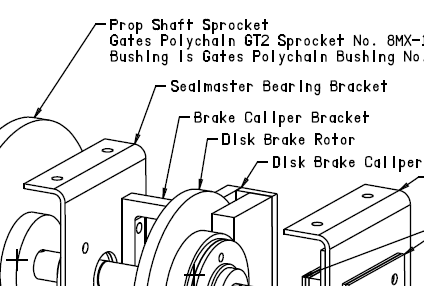

This WindBine TM Part includes the drawing and electronic file for the Bracket for Sealmaster Bearing that the Inventor used for his WindBine TM machine for rotation of the Prop Shaft on the alternator drive end! This is a ball bearing off-the-shelf Sealmaster part whereas the Prop end of the Prop shaft uses a taper bearing for handling wind loading of the props!

Purchase full drawing that includes the electronic file!

WindBine TM
Ph: 403 453-1897
Bracket for Sealmaster Bearing
Part # BRSEALM
Material: 1/4" mild steel
Finish: Powder Coat Sage
Thickness: 1/4"
Weight:  7.9 lbs
Pieces required: 3
Scale: 5/16
Dim's in inches
May 18/19
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
