WindBine TM Bracket for Timken Bearing - Part #BRKTIMK

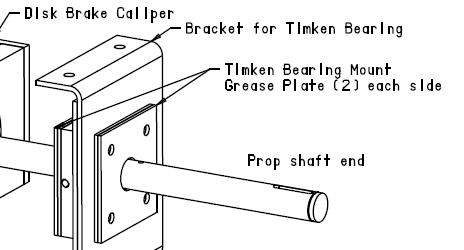

This WindBine TM Part includes the drawing and electronic file for the Bracket for Timken Bearing that the Inventor used for his WindBine TM machine for rotation of the Prop Shaft on the Prop drive end! This is a tapered common roller bearing that has a custom mount for the WindBIne TM of the Inventor!

Purchase full drawing that includes the electronic file!

WindBine TM
Bracket for Timken Bearing
Part # BRKTIMK
Material: 1/4" mild steel
Finish: Powder Coat Sage
Thickness: 1/4"
Weight:  8.3 lbs
Pieces required: 3
Scale: 5/16
Dim's in inches
January 17/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
