WindBine TM Brake Caliper Bracket - Part #CLPBRK

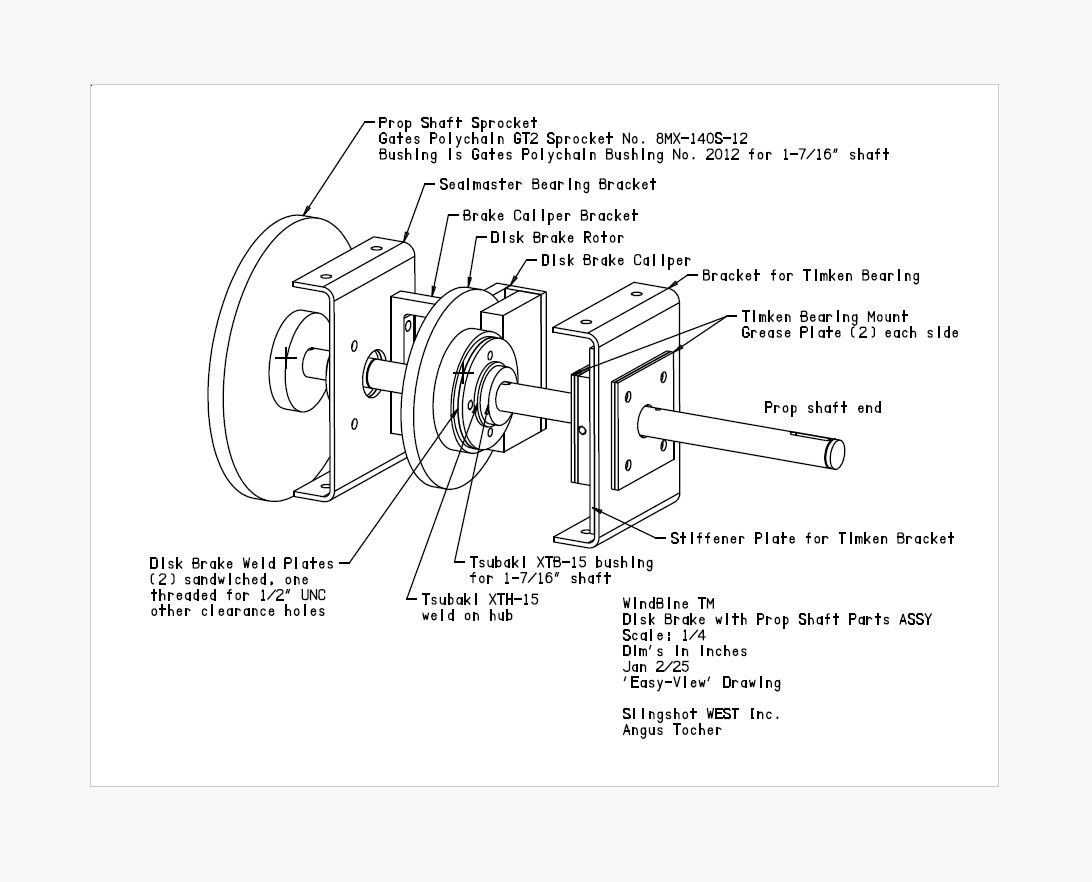

This WindBine TM Part includes the drawing and electronic file for the Brake Caliper Bracket! This is a part the Inventor used to attach the off-the-shelf Brake Caliper onto two of the bolts attaching the Sealmaster Bearing! Note the Assembly Drawing and the Assembly Guide!

Purchase full drawing that includes the electronic file!

WindBine TM
Brake Caliper Bracket
Part # CLPBRK
Material: 1" mild steel
Finish: Powder Coat Sage
Thickness: 1"
Weight:  3.7 lbs
Pieces required: 3
Scale: 1/2
Dim's in inches
May 20/19
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
