WindBine TM Brake Valve Mount Blocks - Part #BVMNTBLK

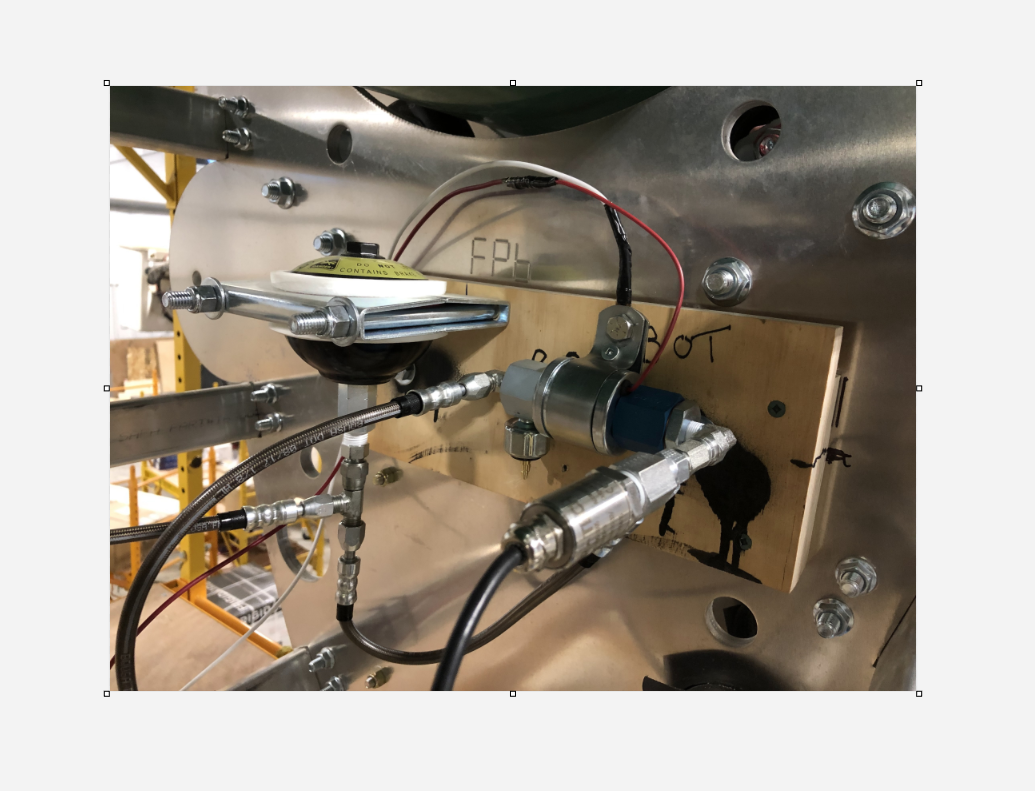

This WindBine TM Part includes the drawing for the Brake Valve Mount Blocks that the Inventor used for his WindBine TM to mount the off-the-shelf Mico brake valves that individually allow the Brakes of the WindBine TM to be locked or unlocked!  This part was also used to mount the off-the-shelf Hydraulic Accumulator to prevent the hydraulic lines from over-pressuring in hot and sunny times!  See the Assembly Drawings and Assembly Guide!

Purchase full drawing!

WindBine TM
Brake Valve Mount Blocks
Part # BVMNTBLK
Material: 2 layers 3/4" plywood
Finish: None
Thickness: 1-1/2"
Weight:  1.8 lbs
Pieces required: 3
Scale: 3/8
Dim's in inches
May 20/19
'Easy-View Drawing

Slingshot WEST Inc.
Angus Tocher
