WindBine TM Cable Rider Mount Welding - #CBLRIDERMNTWELD

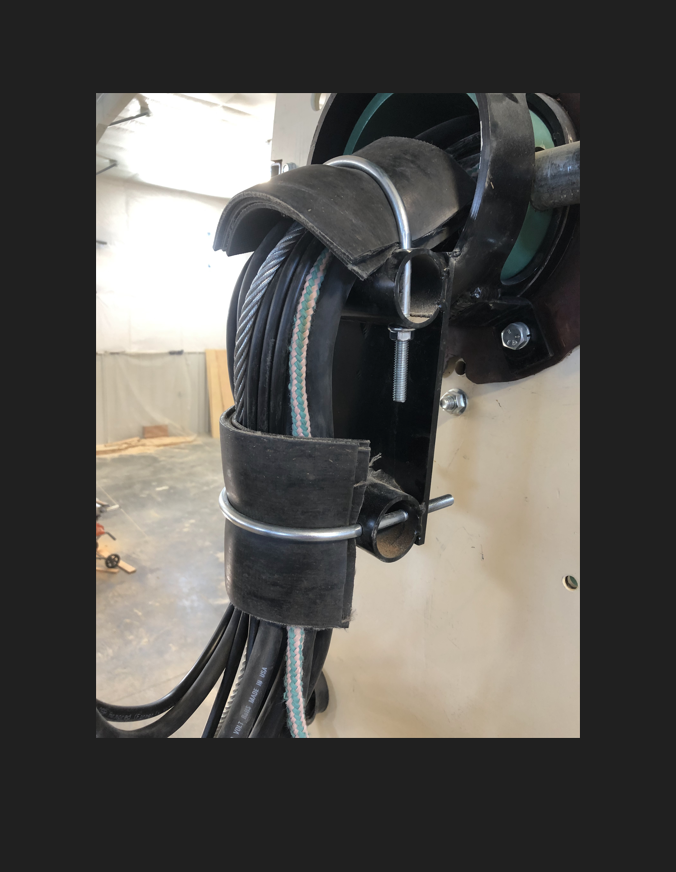

This WindBine TM drawing includes the assembly and welding instructions that the Inventor used for his WindBine TM machine to join the Cable Rider Mount components and the Bearing Collar Angle Mounts to the Bearing Pipe Collar in order to guide and secure the electrical cabling that runs down the Tilt Base Upper Pole!

See the Assembly Drawings and Assembly Guide!

Purchase full drawing!

WindBine TM
Cable Rider Mount Welding
Part # CBLRIDERMNTWELD
Material:
Finish: Paint Black after welding
Thickness:
Weight:
Pieces required: 3
Scale: 1/3
Dim's in inches
Oct 9/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
