WindBine TM Centre Brace Guard - Part #CENTBRGRD

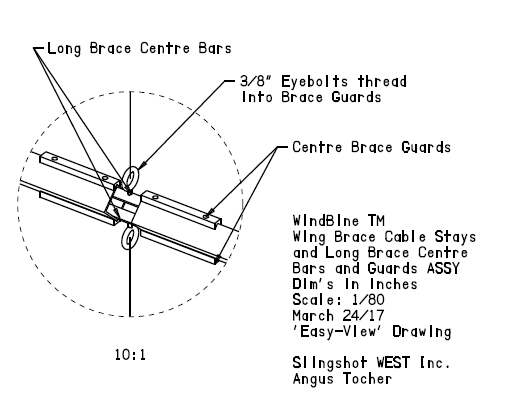

This WindBine TM Part includes the drawing for the Centre Brace Guard that the Inventor used to join the four Long Braces of the WindBine TM that span across the outside Wings! Two of these are necessary to join the Long Brace sections together! These pieces, along with the Long Brace Centre Bar, sandwich the Long Brace to give a very strong join and also provide attachment points for the cable that runs vertically attaching all of the Long Braces together to stabilize and prevent vibration?

Purchase full drawing!

WindBine TM
Centre Brace Guard
Part # CENTBRGRD
Material: 1" X 1" Steel Bar
Finish: Powder Coat SAND
Thickness:
Weight:  1.2 lbs
Pieces required: 16
Scale: 1/2
Dim's in inches
Mar 3/16
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
