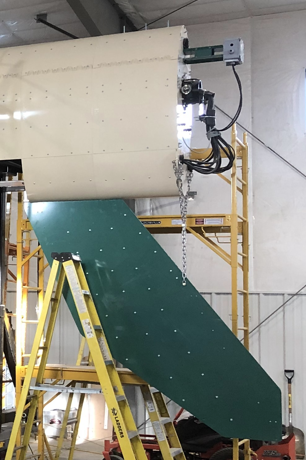

WindBine TM Compass Module Mount ASSY

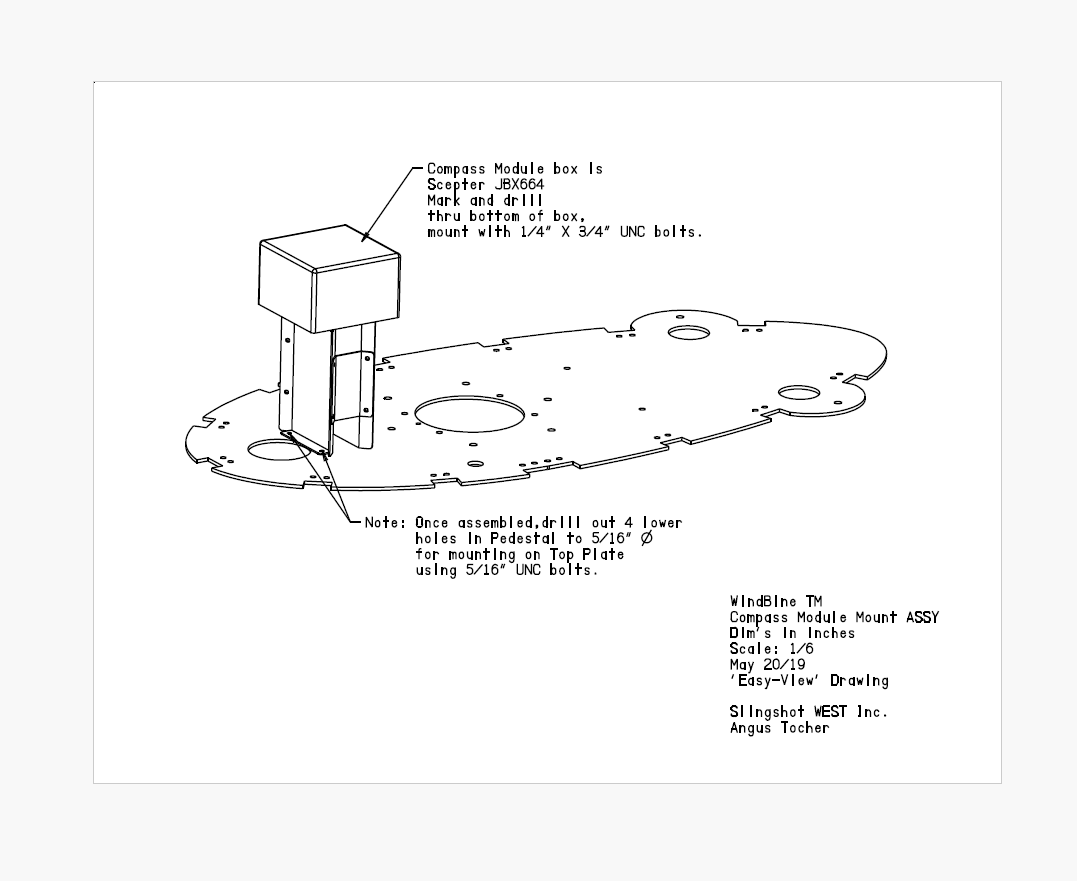

This WindBine TM Assembly Drawing illustrates the Compass Module mounted to the Compass Module Pedestal. This contains the circuit board that includes an electronic magnetic compass to provide Wind Direction to the Graphical User Interface (GUI) and also keep track of the number of rotations that the WindBine TM makes. Although the WindBine includes a simple 'Re-wind' mechanism that re-positions the WindBIne TM when winds are calm, it is a very good thing to keep track of!  The sensor board also includes a Beacon Light switch that automatically turns the Beacon Light on at night!
