    WindBine TM Step Platform ASSY

    WindBine TM Step Platform ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

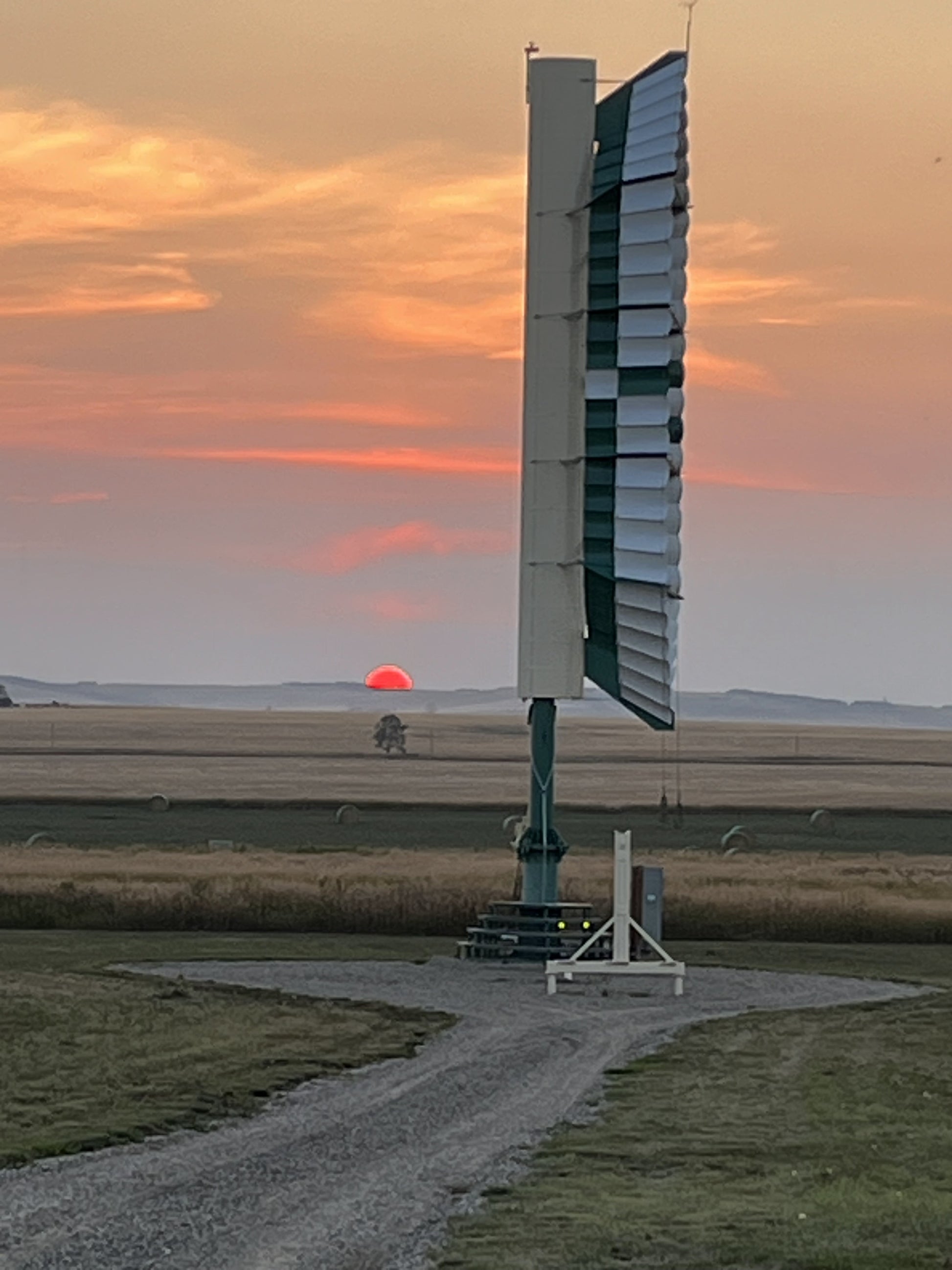

    This WindBine TM Assembly Drawing illustrates the Step Platform assembly that the Inventor used to access the bolts of the Base Plate when laying down or raising up his WindBine TM!  It also works as a nice sitting area for coffee!

    This particular drawing is free for download!

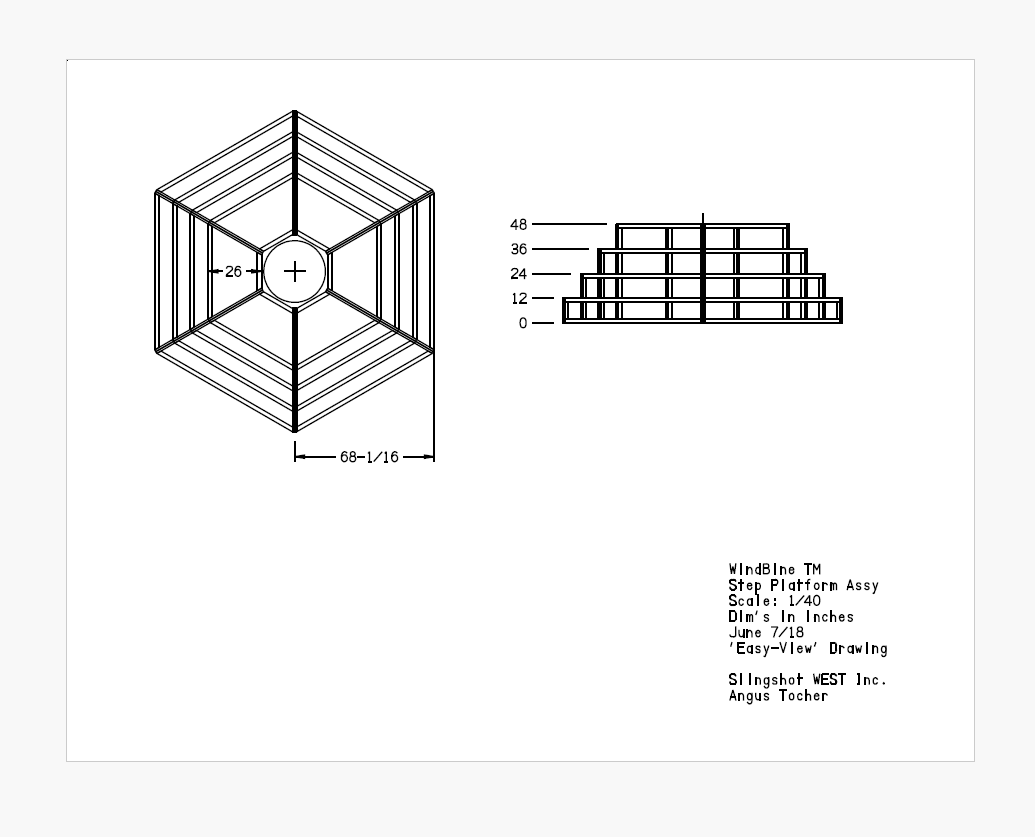

    WindBine TM
    Step Platform Assy
    Scale: 1/40
    Dim's in inches
    June 7/18
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
