WindBine TM Compass Module Pedestal Wide - Part #CMPMODPEDW

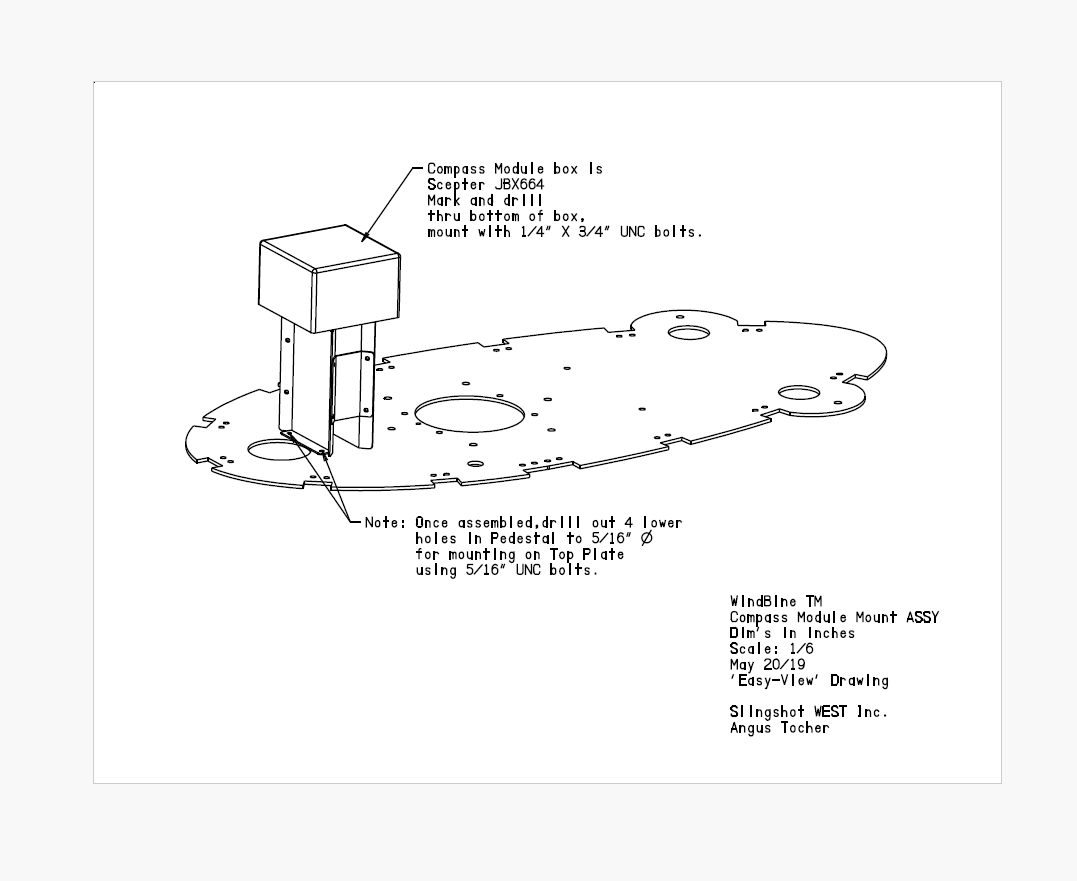

This WindBine TM Part includes the drawing and electronic file for the Compass Module Pedestal Wide! This is the second of two parts that the Inventor used to mount the Compass Module of his WindBine TM machine above the steel Top Plates so as to avoid magnetic interference from these steel Top Plates and achieve accurate compass direction of the oncoming wind!  Note the Assembly Drawing and the Assembly Guide!

Purchase full drawing that includes the electronic file!

WindBine TM
Compass Module Pedestal Wide
Part # CMPMODPEDW
Material: Gauge 11 5052 aluminum
          punched and bent
Finish: Powder Coat SAGE
Thickness: 0.091"
Weight: 0.75 lbs
Pieces required: 2
Scale: 5:16
Dim's in inches
Sept 20/18
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
