WindBine TM Dexter or Hydrastar Swing - Part #DEXSWNG

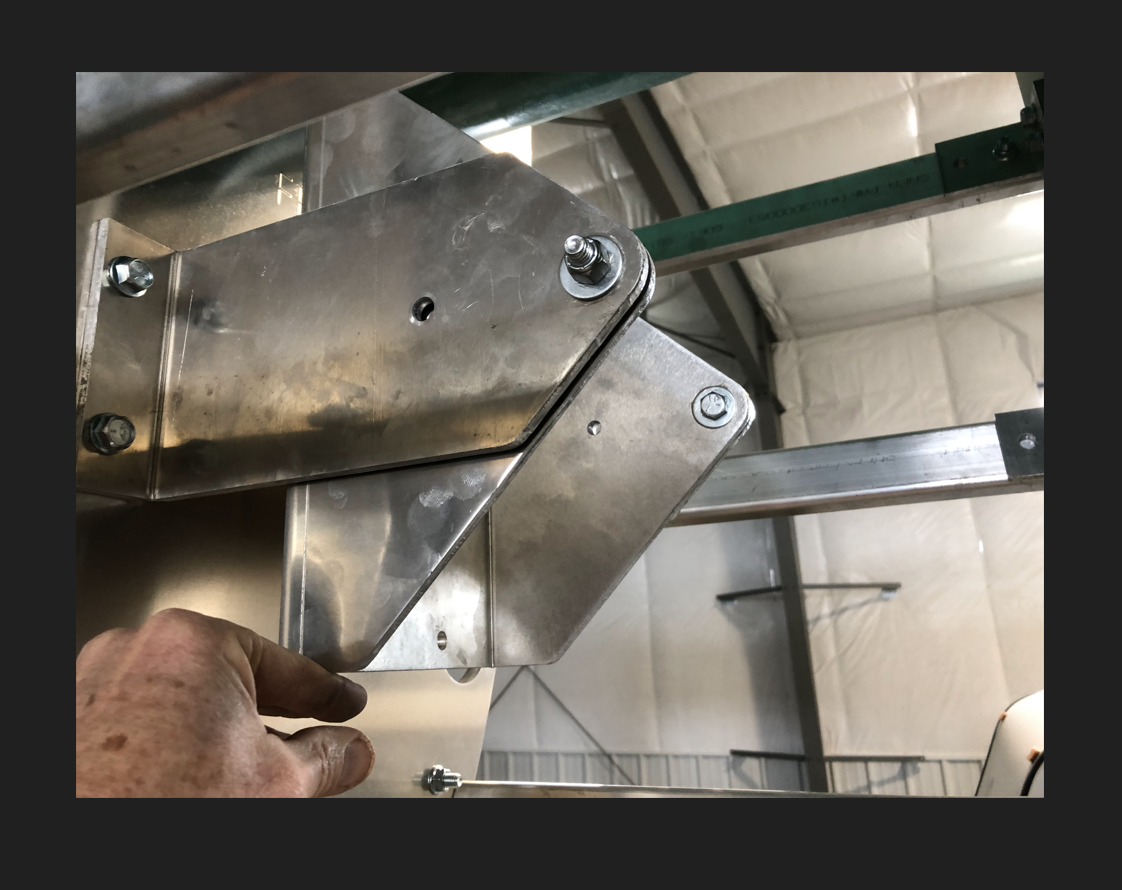

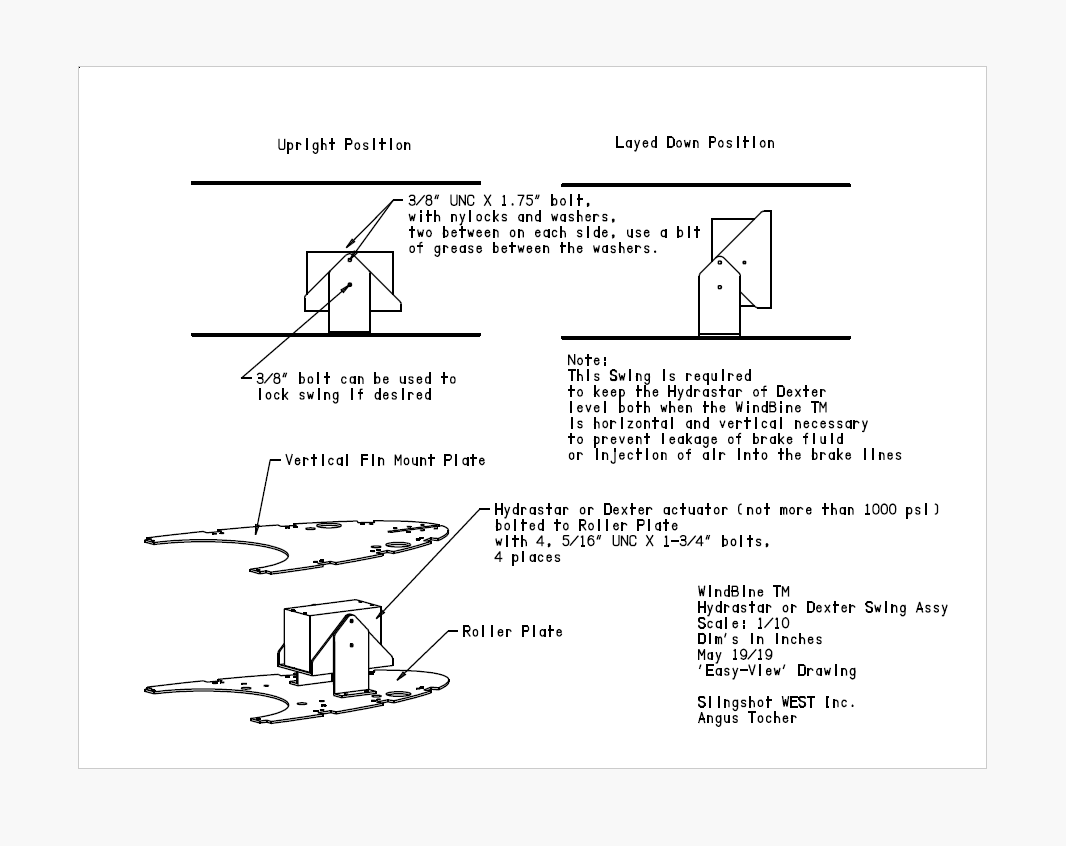

This WindBine TM Part includes the drawing and electronic file for the Dexter or Hydrastar Swing! This is a part the Inventor used to mount the Dexter or Hydrastar electric over Hydraulic Actuator that powers the Disk Brakes for his WindBine TM machine! This Swing allows the operation of the Actuator in both the standing up and laid down positions of the WindBine TM! Note the Assembly Drawing and the Assembly Guide!

Purchase full drawing that includes the electronic file!

WindBine TM
Dexter or Hydrastar Swing
Part # DEXSWNG
Material: 3/16" 5052 Aluminum
Finish: None
Thickness: 3/16"
Weight:  3.4 lbs
Pieces required: 1
Scale: 3/16
Dim's in inches
Feb 8/25
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
