WindBine TM Disk Brake Weld Plate - Part #DISKBRKWELDPLT

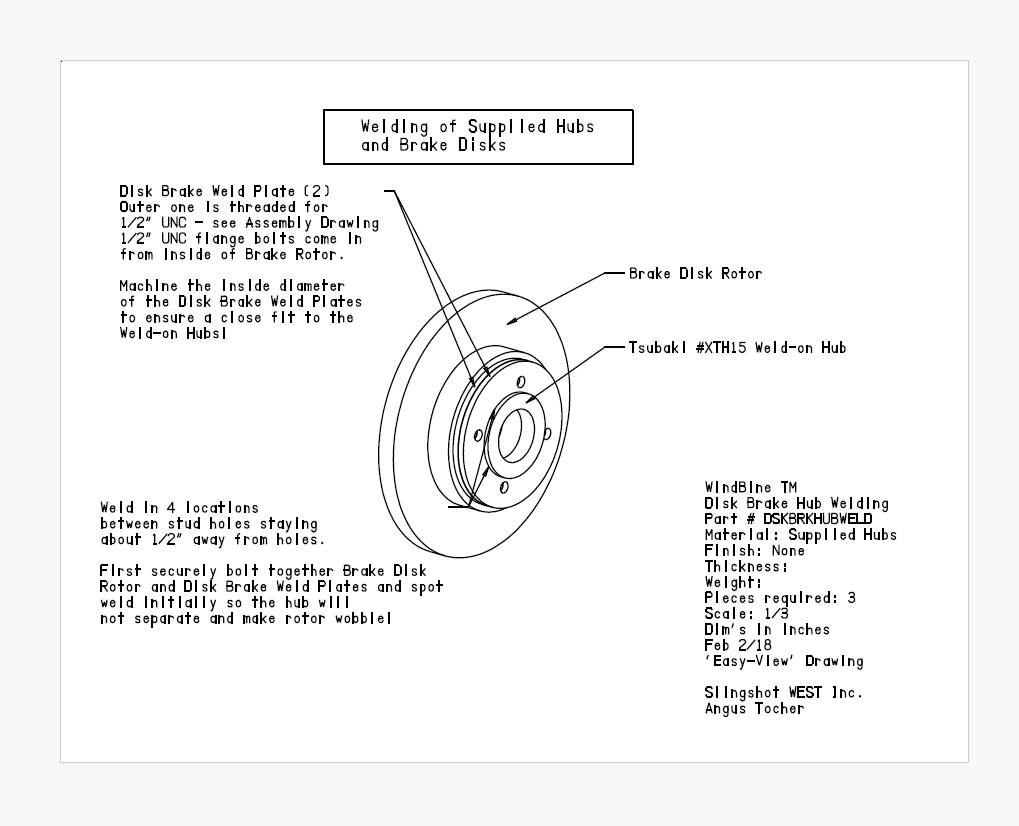

This WindBine TM Part includes the drawing and electronic file for the Disk Brake Weld Plate! This is a part the Inventor used to weld the hub onto and then bolt onto the Disk Brake Rotor of his WindBine TM machine!  Two of these are required, note the slight differences between the two in the Drawing!

Purchase full drawing that includes the electronic file!

WindBine TM
Disk Brake Weld Plate
Part # DISKBRKWELDPLT
Material: 1/4" mild steel plate
Finish: None
Thickness: 1/4"
Weight:  1.19 lbs
Pieces required: 6 (half with tapped holes **A
                    half with untapped clearance
                    holes for 1/2" bolts (0.5156" |DIA)
Scale: 5/8
Dim's in inches
Nov 9/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
