WindBine TM Fin Anchor Angle Punched - Part #FINANCP

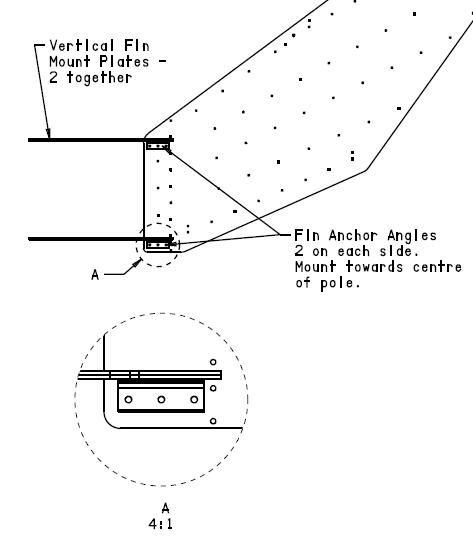

This WindBine TM Part includes the drawing and electronic file for the Fin Anchor Angles that the Inventor used to mount the Vertical Fins top and bottom of his WindBine TM to the Fuselage Plates! This part is best water or laserjet cut as punching 1/4" steel is hard on the punch tools!

Purchase full drawing that includes the electronic file!

WindBine TM
Fin Anchor Angle Punched
Part # FINANCP
Material: 1/4" Mild Steel Plate
Finish: Powder Coat Sage
Thickness: 0.25" wall
Weight:  1.55 lbs
Pieces required: 8
Scale: 2/3
Dim's in inches
Dec 10/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
