WindBine TM Fuselage Skin 1 and 14 Side - Part #FS1N14SIDE

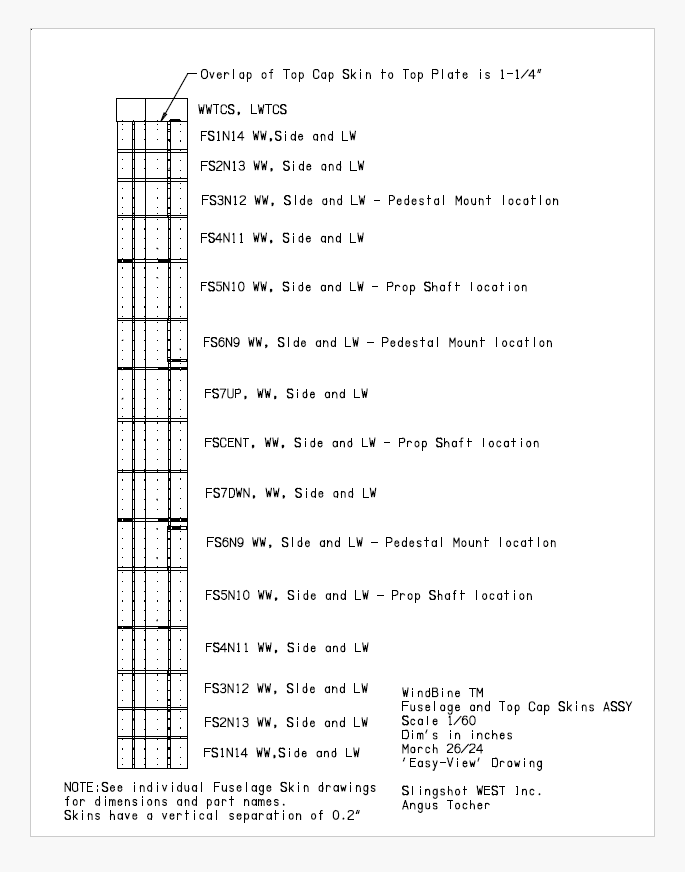

This WindBine TM Part includes the drawing and electronic file for the Fuselage Skin 1 and 14 Side that the Inventor used to form the very strong semi-monocoque fuselage of his WindBine TM!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Fuselage Skin 1 and 14 Side
Part # FS1N14Side
Material: 5052 sheet aluminum
          14 gauge
Finish: Not Symmetric
        Powder Coat BOTH SIDES
        Sand
Thickness: 0.0641"
Weight:  approx 5.25 lbs
Pieces required: 4
Scale: 1/8
Dim's in inches
March 28/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
