WindBine TM Fuselage Skin 7 DWN LW - Part #FS7DWNLW

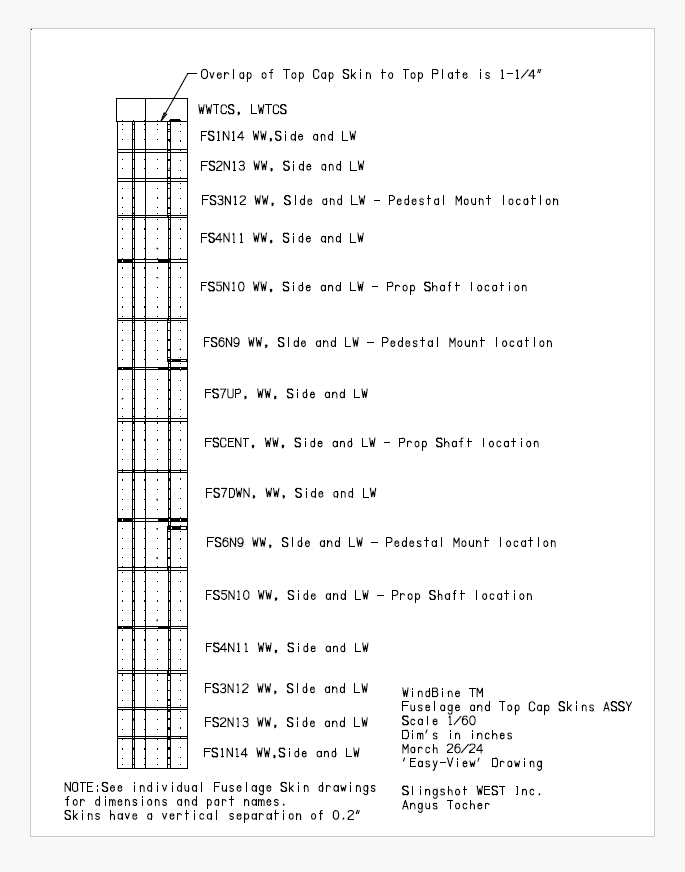

This WindBine TM Part includes the drawing and electronic file for the Fuselage Skin 7 DWN LW (leeward) that the Inventor used to form the very strong semi-monocoque fuselage of his WindBine TM! Note: (WW) Fuselage Skins incorporate vortex generator tabs to bend out 90 degrees that the Inventor used to reduce fuselage aerodynamic drag!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Fuselage Skin 7 DWN LW
Part # FS7DWNLW
Material: 5052 sheet aluminum
          20 gauge
Finish: Symmetric
        POWDER COAT ONE SIDE ONLY
        Sand
Thickness: 0.032"
Weight:  approx 5.44 lbs
Pieces required: 1
Scale: 1/10
Dim's in inches
March 28/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
