WindBine TM Fuselage Skin Centre WW - Part #FSCENTWW

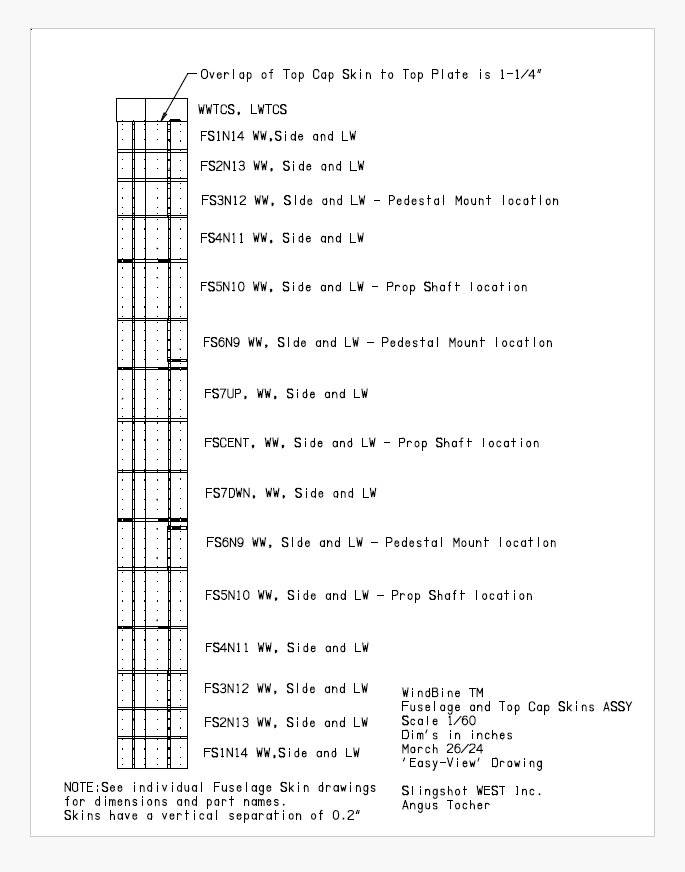

This WindBine TM Part includes the drawing and electronic file for the Fuselage Skin Centre WW (windward) that the Inventor used to form the very strong semi-monocoque fuselage of his WindBine TM! Note: (WW) Fuselage Skins incorporate vortex generator tabs to bend out 90 degrees that the Inventor used to reduce fuselage aerodynamic drag!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Fuselage Skin CENT WW
Part # FSCENTWW
Material: 5052 sheet aluminum
          18 gauge
Finish: Symmetric
        Powder Coat 1 side
        on tabbed and louvered
        out side
        Sand
Thickness: 0.0403"
Weight:  approx 7.18 lbs
Pieces required: 1
Scale: 1/10
Dim's in inches
March 28/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
