    WindBine TM Hinged Wing Panel ASSY

    WindBine TM Hinged Wing Panel ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

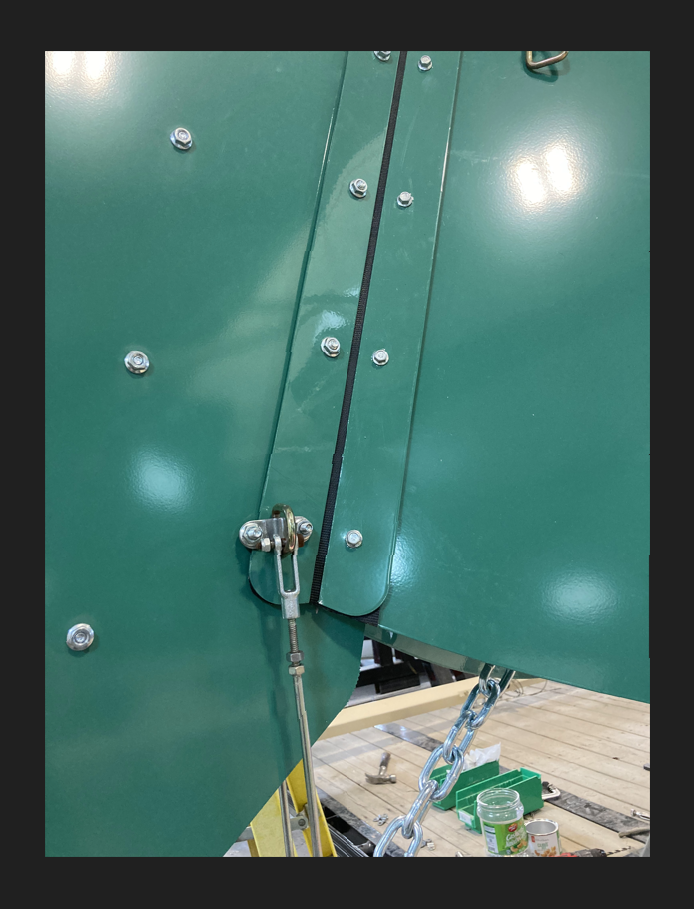

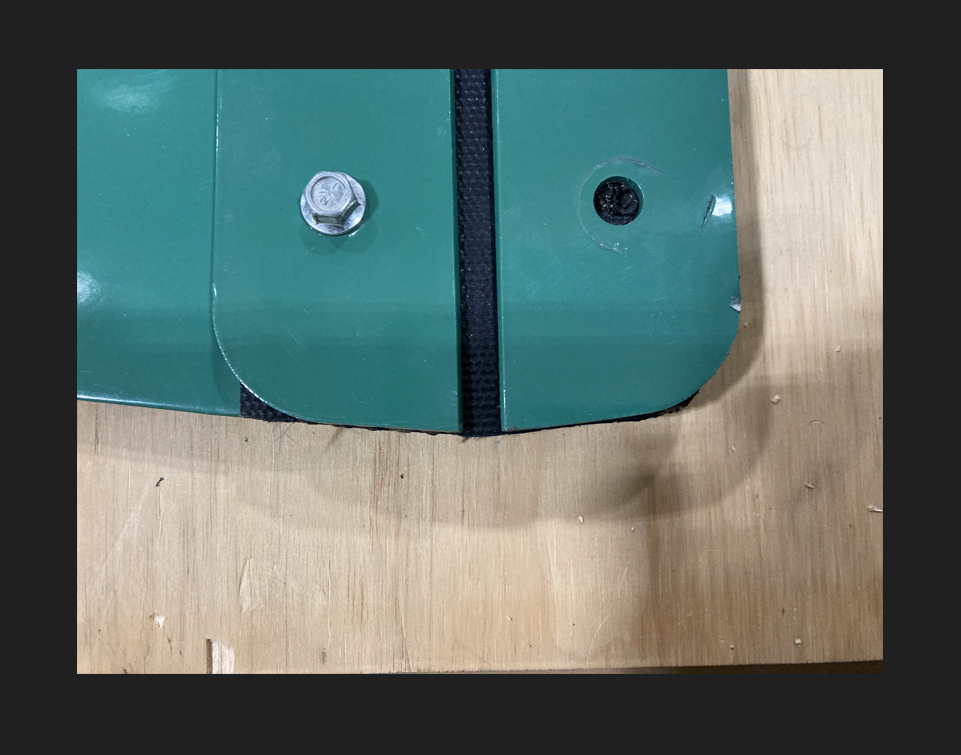

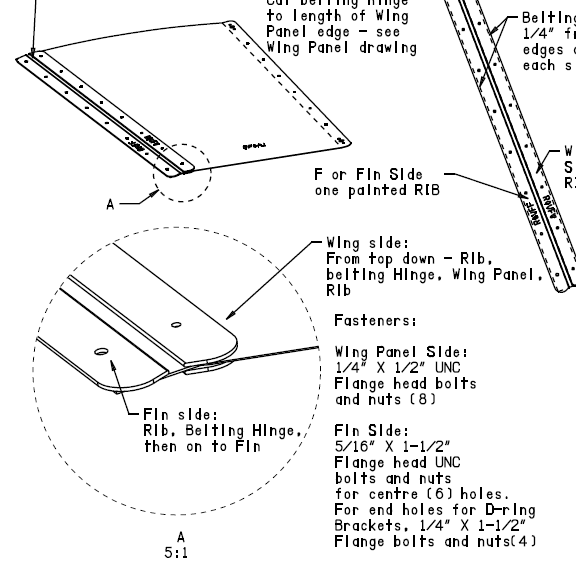

    This WindBine TM Assembly Drawing illustrates the assembly of the Hinged Wing Panel assembly. This is necessary as the join of the Wing Panels to the Fins is from a flexible movable Wing Panel assembly to a solid, rigid Fin.  The Wing Panels of the WindBine TM move slightly with stronger winds and therefore this Hinge is required!

    Purchase full drawing!

    WindBine TM
    Hinged Wing Panels Assy
    Scale 1/12
    Dim's in Inches
    Aug 1/20
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
