    WindBine TM Inner A Wing Panel ASSY

    WindBine TM Inner A Wing Panel ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

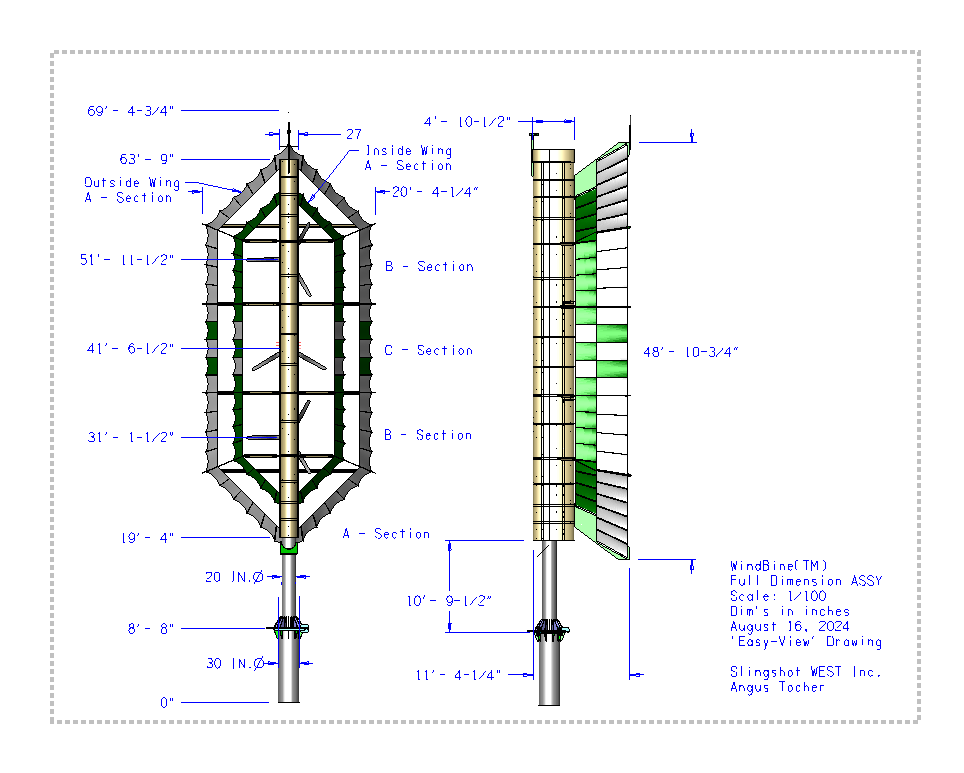

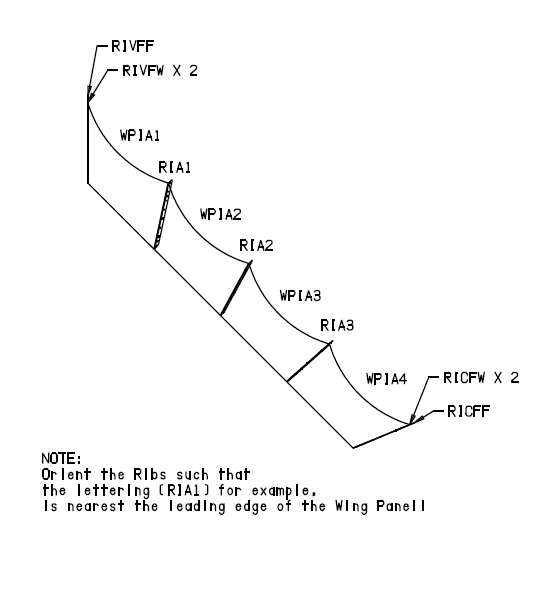

    This WindBine TM Assembly Drawing illustrates one of the 4 Inner A Wing Panel assemblies. The 'A' wings are the 4 Inner and 4 Outer Wing Panel sections as indicated in the WindBine Full Dimension ASSY drawing. This drawing illustrates the placement of each of the Wing Panels as well as the Ribs!

    Purchase full drawing!

    WindBine TM
    Inner A Wing Panel ASSY
    Scale 1/20
    Dim's in Inches
    March 30/18
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
