    WindBine TM Rewind Chain and Extension Spring ASSY

    WindBine TM Rewind Chain and Extension Spring ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

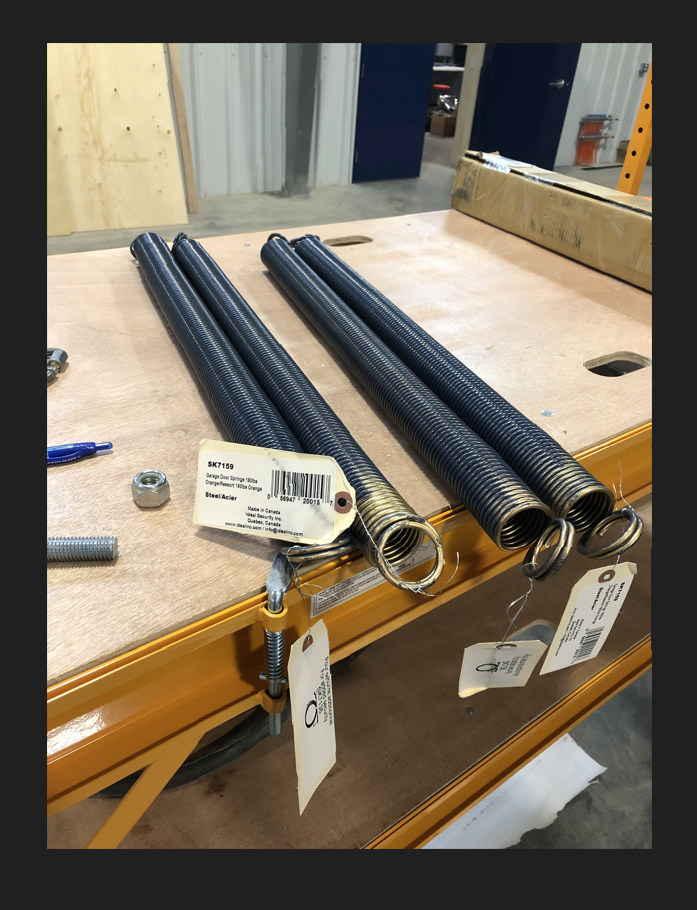

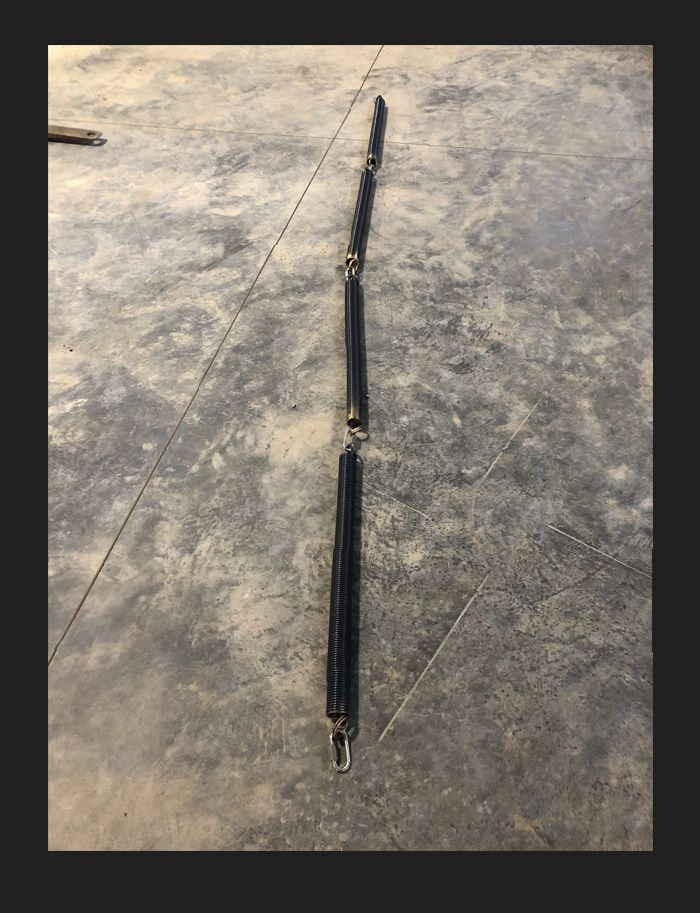

    This WindBine TM Assembly Drawing illustrates the Rewind Chain and Extension Spring assembly. This shows the simple use of 6, 140 lb garage door extension springs in series attached to 1/8" chain to ensure the head of the WindBine TM returns to a neutral position after the winds calm!

    Purchase full drawing!

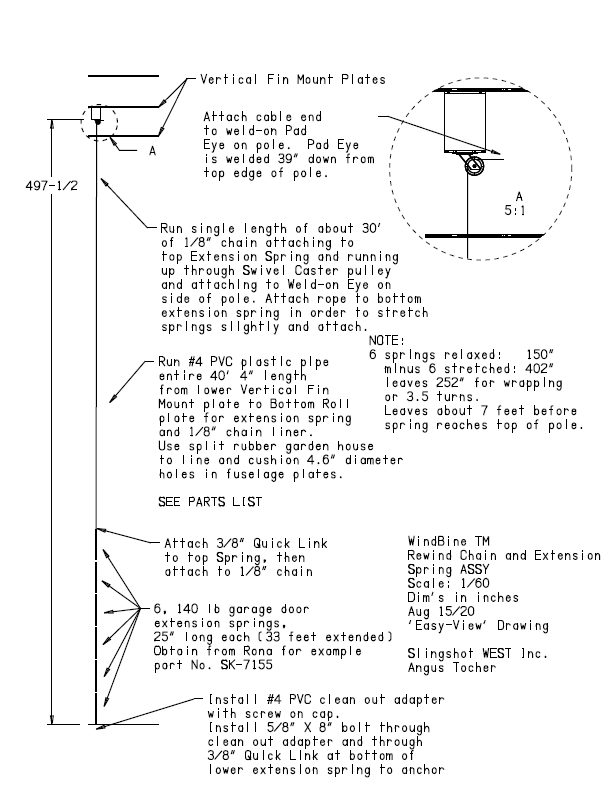

    WindBine TM
    Rewind Chain and Extension
    Spring ASSY
    Scale: 1/60
    Dim's in inches
    Aug 15/20
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
