WindBine TM Rewind Swivel Mount - Part #RSVLMNT

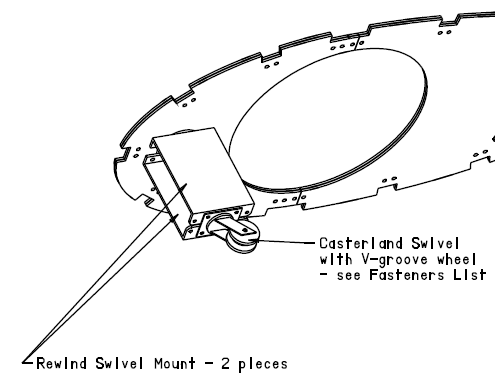

This WindBine TM Part includes the drawing and electronic file for the Rewind Swivel Mount that the Inventor used for his WindBine TM machine to mount the off-the-shelf fork and roller wheel for the 1/8" chain that wraps around the Pole within the Fuselage of the WindBine TM and allows it to unwind from changes in wind direction!  See the Rewind Swivel Mount Assembly drawing, the Rewind Cable and Extension Spring Assembly drawing and of course the Assembly Guide for detail!

Purchase full drawing that includes the electronic file!

WindBine TM
Rewind Swivel Mount
Part # RSVLMNT
Material: 1/4" mild steel
Finish: Powder Coat Sage
Thickness: 1/4"
Weight:  5.95 lbs
Pieces required: 2
Scale: 5/16
Dim's in inches
May 20/19
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
