WindBine TM Rib Outer Corner Fin Fin Side - Part #ROCFF

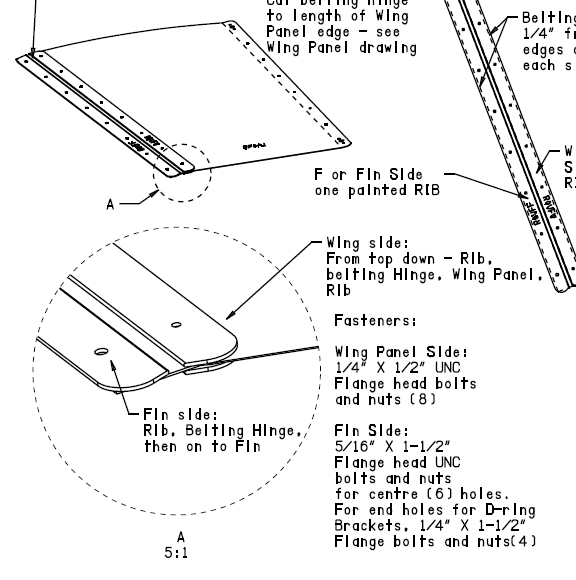

This WindBine TM Part includes the drawing and electronic file for the Rib Outer Corner Fin, Fin Side for punch that the Inventor used to join and stiffen the Accelerator Wings of his WindBine TM! These light weight aluminum Ribs join adjacent Wing Panels together, and provide a flexible hinge for the Wing Panel sections that join the rigid Fins! The Inventor used remarkably strong and flexible 4" wide X 1/8" thick baler belting for this hinge!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Rib Outer Corner Fin
Fin Side
Part # ROCFF
Material: 5052 Sheet Aluminum
Finish: Powder Coat SAGE
Thickness: 0.125"
Weight:  0.98 lbs
Pieces required: 8
Scale: 1/6
Dim's in inches
June 10/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
