WindBine TM Long Brace Centre Bar - Part #LBCB

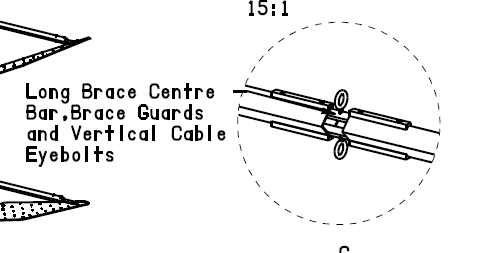

This WindBine TM Part includes the drawing for the Long Brace Centre Bar that the Inventor used to join the four Long Braces of the WindBine TM that span across the outside Wings! Two of these are necessary to join the Long Brace sections together!

Purchase full drawing!

WindBine TM
Long Brace Centre Bar
Part # LBCB
Material: 1" X 1" Steel Bar
Finish: Powder Coat (Any colour)
Thickness: 1"
Weight:  6.0 lbs
Pieces required: 8
Scale: 1/4
Dim's in inches
Aug 13/18
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
