WindBine TM Short Bent Brace Bar - Part #SBBBAR

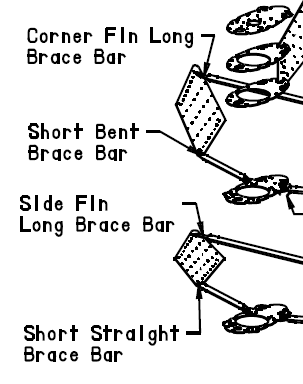

This WindBine TM Part includes the drawing and electronic file for the Short Bent Brace Bar that the Inventor used to attach the Corner Fins to the Fuselage of the WindBine TM!

Purchase full drawing that includes the electronic file!

WindBine TM
Short Bent Brace Bar
Part # SBBBAR
Material: 3.5" X 3/8" Steel Bar
Finish: Powder Coat Sand
Thickness: 3/8"
Weight:  4.25 lbs
Pieces required: 4, BEND 1/2 OF THEM UP
                    AND 1/2 OF THEM DOWN !!
Scale: 3/8
Dim's in inches
March 23/17
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
