WindBine TM Short Straight Brace Bar - Part #SSBBAR

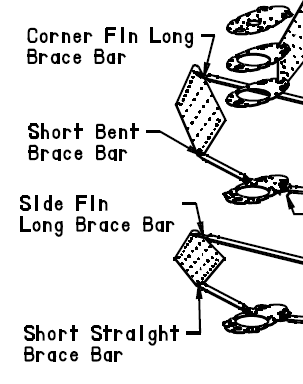

This WindBine TM Part includes the drawing and electronic file for the Short Straight Brace Bar that the Inventor used to attach the Side Fins to the Fuselage of the WindBine TM!

Purchase full drawing that includes the electronic file!

WindBine TM
Short Straight Brace Bar
Part # SSBBAR
Material: 3.5" X 3/8" Steel Bar
Finish: Powder Coat Sand
Thickness: 3/8"
Weight:  4.24 lbs
Pieces required: 12
Scale: 3/8
Dim's in inches
April 22/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
