WindBine TM Stiffener Plate for Timken Bracket - Part #STIFFPLT

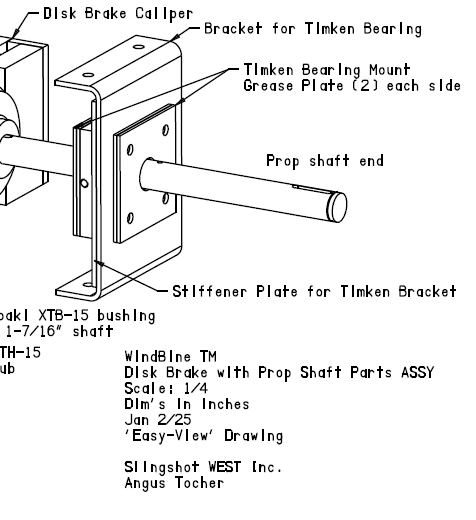

This WindBine TM Part includes the drawing and electronic file for the Stiffener Plate for Timken Bracket that the Inventor used for his WindBine TM machine for attaching to the inside face of the Timken Bearing Bracket to take up the wind loading on the Props!

Purchase full drawing that includes the electronic file!

WindBine TM
Stiffener Plate
            for Timken Bracket
Part # STIFFPLT
Material: 1/4" mild steel
Finish: Powder Coat Sage
Thickness: 1/4"
Weight:  5.1 lbs
Pieces required: 3
Scale: 5/16
Dim's in inches
Sept 12/15
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
