WindBine TM Stringer Angles Aluminum - Part #STANGA

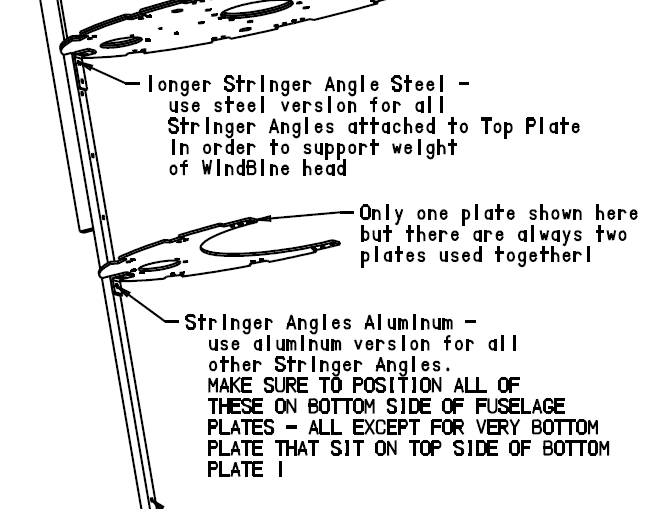

This WindBine TM Part includes the drawing for the Stringer Angles Aluminum that the Inventor used to bolt together the Stringers to the Fuselage Plates except at the very top of his WindBIne TM where steel is used rather than aluminum!

Purchase full drawing!

WindBine TM
Stringer Angles Aluminum
Part # STANGA
Material: 2" X 2" X 1/4" Alum Angle
Finish: None
Thickness: 0.25" wall
Weight: 0.18 lbs
Pieces required: 343 min
Scale: 3/4
Dim's in inches
Aug 12/19
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
