WindBine TM Stringer Angles Steel - Part #STANGS

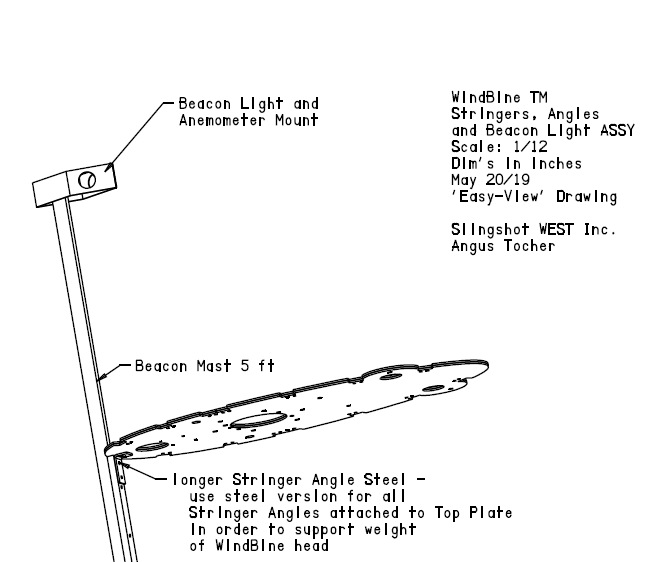

This WindBine TM Part includes the drawing and electronic file for the Stringer Angles Steel that the Inventor used to bolt together the Stringers to the Fuselage Plates at the very top of his WindBIne TM where steel is used rather than aluminum!

Purchase full drawing that includes the electronic file!

WindBine TM
Stringer Angles Steel
Part # STANGS
Material: 1/4" Mild Steel Plate
Finish: Powder Coat Sage
Thickness: 0.25" wall
Weight: 0.76 lbs
Pieces required: 15 min
Scale: 1/2
Dim's in inches
May 28/18
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
