WindBine TM Stringer Block Punched - Part #STBLK

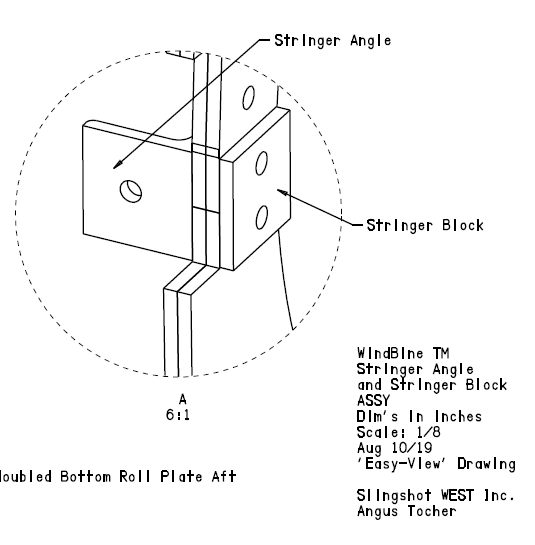

This WindBine TM Part includes the drawing and electronic file for the Stringer Block Punched that the Inventor used to bolt together the Stringers to the Windward and Leeward Fuselage Plates at sides of his WindBine TM!  See the Stringer Angle and Block Assembly drawing for detail!

Purchase full drawing that includes the electronic file!

WindBine TM
Stringer Block Punched
Part # STBLK
Material: 1/4" 5052 Aluminum Plate
Finish: None
Thickness: 0.25" wall
Weight:  0.09 lbs
Pieces required: 40 min
Scale: 1:1
Dim's in inches
Feb 5/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
