WindBine TM Stringer Joiner Leeward - Part #STJOINLEE

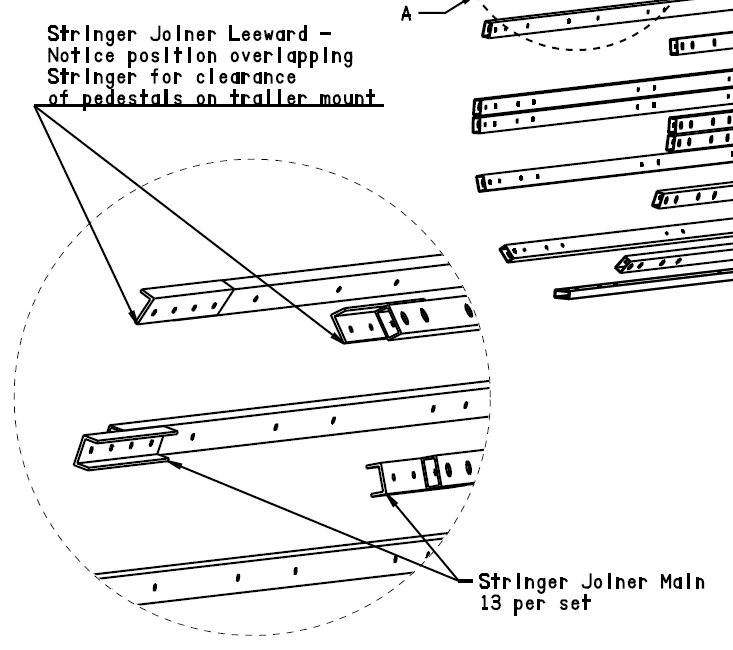

This WindBine TM Part includes the drawing and electronic file for the Stringer Joiner Leeward angle that the Inventor used to join the 3 sets of Stringers on the LEEWARD side!  These are made as angles rather than channels on this side to allow the WindBine TM of the Inventor to clear the top of the Trailer Pedestals when it is being raised off or onto the Trailer it was built on! The Inventor punched and bent these but you may choose to make them from aluminum angle stock for your own version of the WindBine TM!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Stringer Joiner Leeward
Part # STJOINLEE
Material: 3/16"
  Sheet Aluminum 5052
Finish: None
Thickness: 0.1875"
Weight:  0.82 lbs
Pieces required: 4
Scale: 1/2
Dim's in inches
July 20/20
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
