WindBine TM Stringer Joiner Main - Part #STJOIN

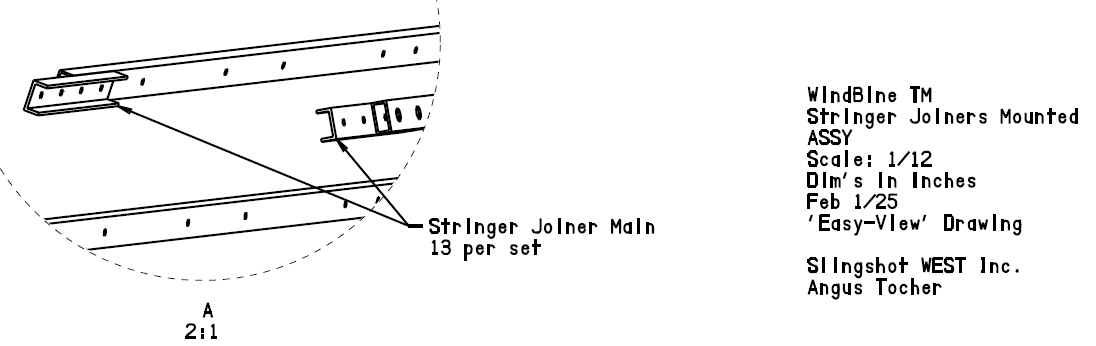

This WindBine TM Part includes the drawing and electronic file for the Stringer Joiner Main channel that the Inventor used to join the 3 sets of Stringers that run the length of the Fuselage!  The Inventor punched and bent these but you may choose to make them from aluminum channel stock for your own version of the WindBine TM!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Stringer Joiner Main
Part # STJOIN
Material: 3/16"
  Sheet Aluminum 5052
Finish: None
Thickness: 0.1875"
Weight:  1.06 lbs
Pieces required: 26
Scale: 1/2
Dim's in inches
Feb 1/25
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
