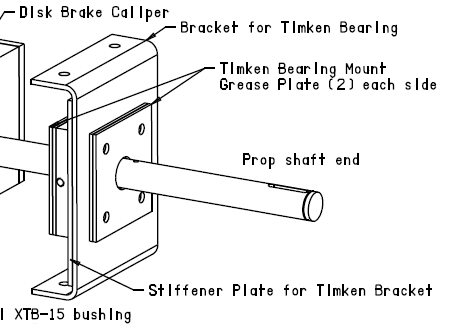

WindBine TM Timken Bearing Mount Grease Plate - Part #TIMPLT

This WindBine TM Part includes the drawing and electronic file for the Timken Bearing Mount Grease Plate that the Inventor used for his WindBine TM machine to keep dust and debris out of the Timken Bearing Mount!  Be sure to insert the Timken Bearing Leather Seal part under this Timken Bearing Mount Grease Plate!

Purchase full drawing that includes the electronic file!

WindBine TM
Timken Bearing
Mount Grease Plate
Part # TIMPLT
Material: 3/16" Aluminum 6061
                or 5052
Finish: None
Thickness: 3/16"
Weight:  0.5 lbs
Pieces required: 6
Scale: 1/2
Dim's in inches
May 13/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
