WindBine TM Timken Bearing Mount - Part #TIMBMNT

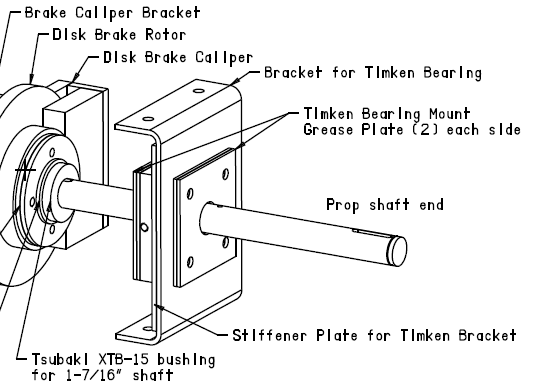

This WindBine TM Part includes the drawing and electronic file for the Timken Bearing Mount that the Inventor used for his WindBine TM machine to mount the Prop end of the Prop Shaft! This Timken bearing is wind-loaded axially and therefore required a simple custom mount! The electronic file for this part is a common Parasolid file (.x_t) that can be easily used to machine this part or just use the drawing!

Purchase full drawing that includes the electronic file!

WindBine TM
Timken Bearing Mount
Part # TIMBMNT
Material: Aluminum 6061
Finish: None
Thickness: 1 3/8"
Weight:  3.0 lbs
Pieces required: 3
Scale: 1/2
Dim's in inches
May 13/14
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
