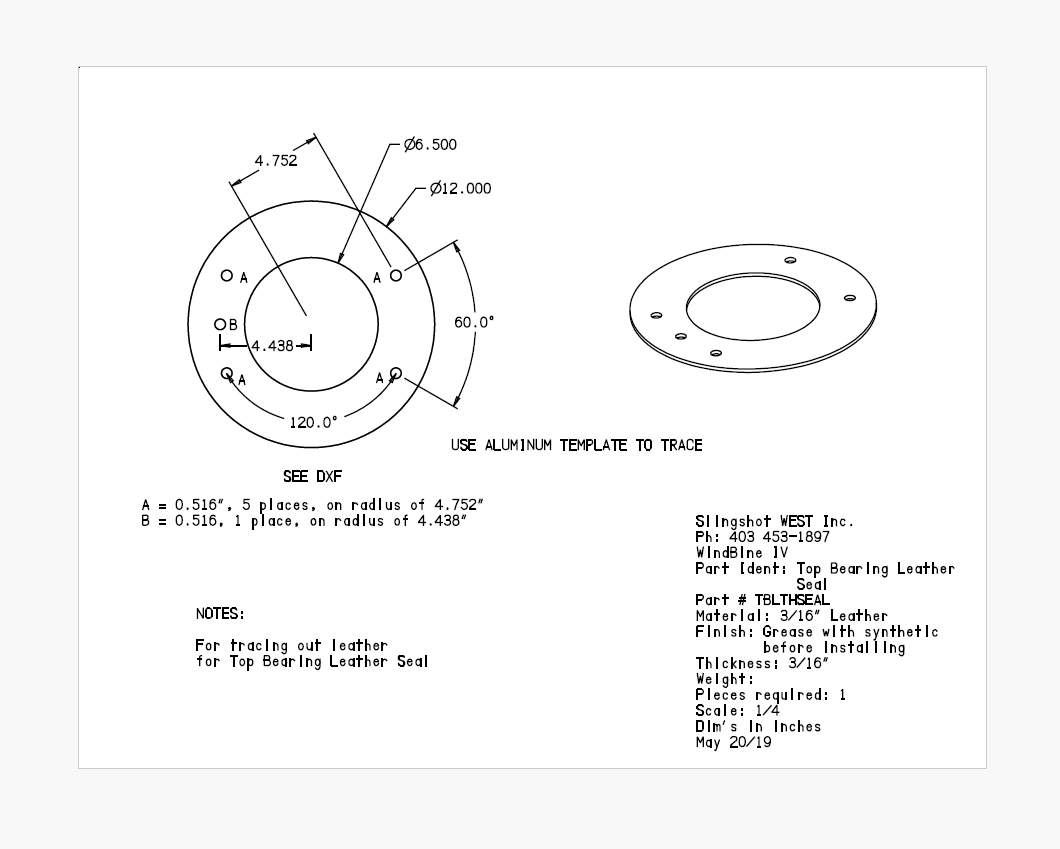

WindBine TM Top Bearing Leather Seal Template - Part #TBLTHSEALTEMPL

This WindBine TM Part includes the drawing and electronic file for the Top Bearing Leather Seal Template! This is a template that the Inventor provides that may be punched out of aluminum sheet or even printed and cut out of stiff paper to trace the Top Bearing Leather Seal. The electronic file provided is the same as for the Leather Seal itself!

Purchase full drawing that includes the electronic file!

WindBine TM
Top Bearing Leather
Seal Template
Part # TBLTHSEALTEMPL
Material: 3/16" 5052 Alum
Finish: None
Thickness: 3/16"
Weight:
Pieces required: 1
Scale: 1/4
Dim's in inches
May 20/19

Slingshot WEST Inc.
Angus Tocher
