    WindBine TM Upper Stringer Norm - Part #STR1

    WindBine TM Upper Stringer Norm - Part #STR1

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

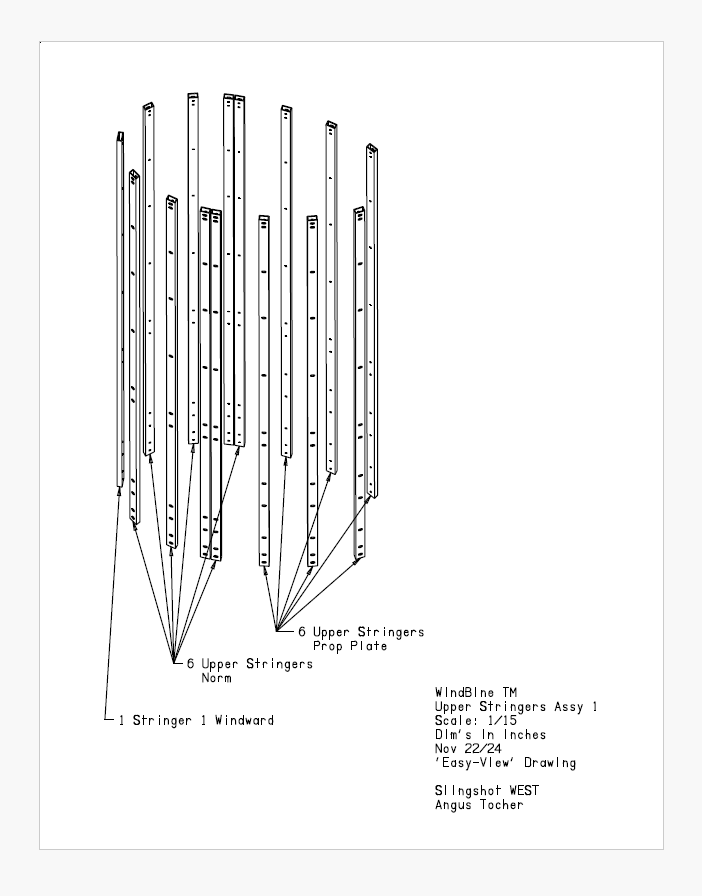

    This WindBine TM Part drawing is for the Upper Stringer Norm! These Stringer parts are 1" X 2" aluminum rectangular tubing that run vertically and, along with aluminum skins, create a very strong semi-monocoque 'fuselage' to support all of the components of the Inventor's WindBine TM!

    Purchase full drawing!

    WindBine TM
    Upper Stringer Norm
    Part # STR1
    Material: 1" X 2" Alum rect tubing
    Finish: None
    Thickness: 0.125" wall
    Weight:  12.1 lbs
    Pieces required: 10
    Scale: 1/25
    Dim's in inches
    March 27/24
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
