WindBine TM Upper Stringer Prop Plate - Part #STR2

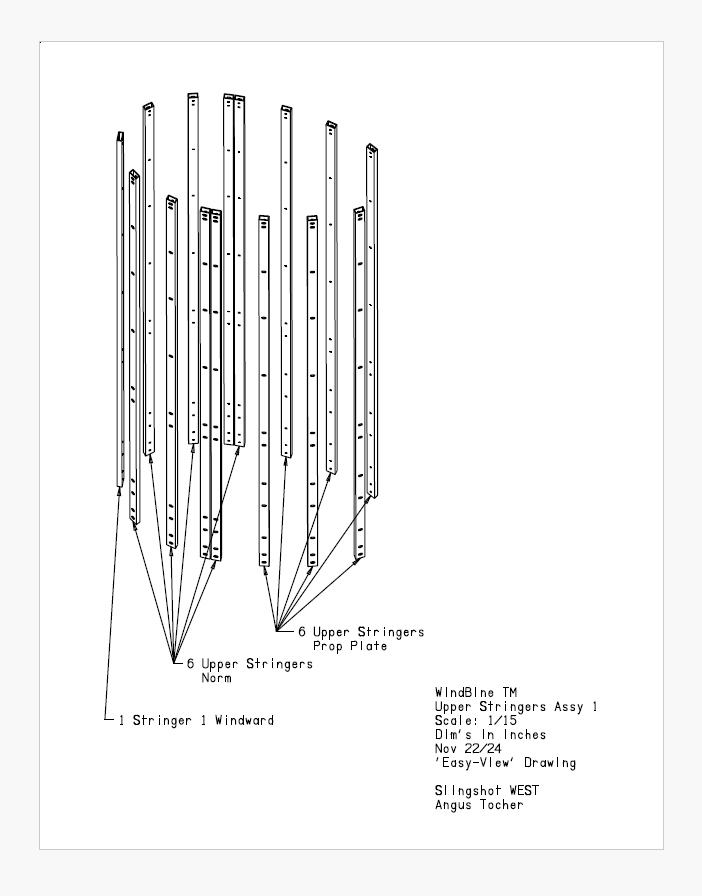

This WindBine TM Part drawing is for the Upper Stringer Prop Plate! These Stringer parts are 1" X 2" aluminum rectangular tubing that run vertically and, along with aluminum skins, create a very strong semi-monocoque 'fuselage' to support all of the components of the Inventor's WindBine TM!

Purchase full drawing!

WindBine TM
Upper Stringer Prop Plate
Part # STR2
Material: 1" X 2" Alum rect tubing
Finish: None
Thickness: 0.125" wall
Weight:  12.0 lbs
Pieces required: 6
Scale: 1/25
Dim's in inches
March 27/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
