    WindBine TM Vertical Fin and Fin Anchor Angles ASSY

    WindBine TM Vertical Fin and Fin Anchor Angles ASSY

    $12.00 CAD
    $12.00 CAD
    Sale Sold out

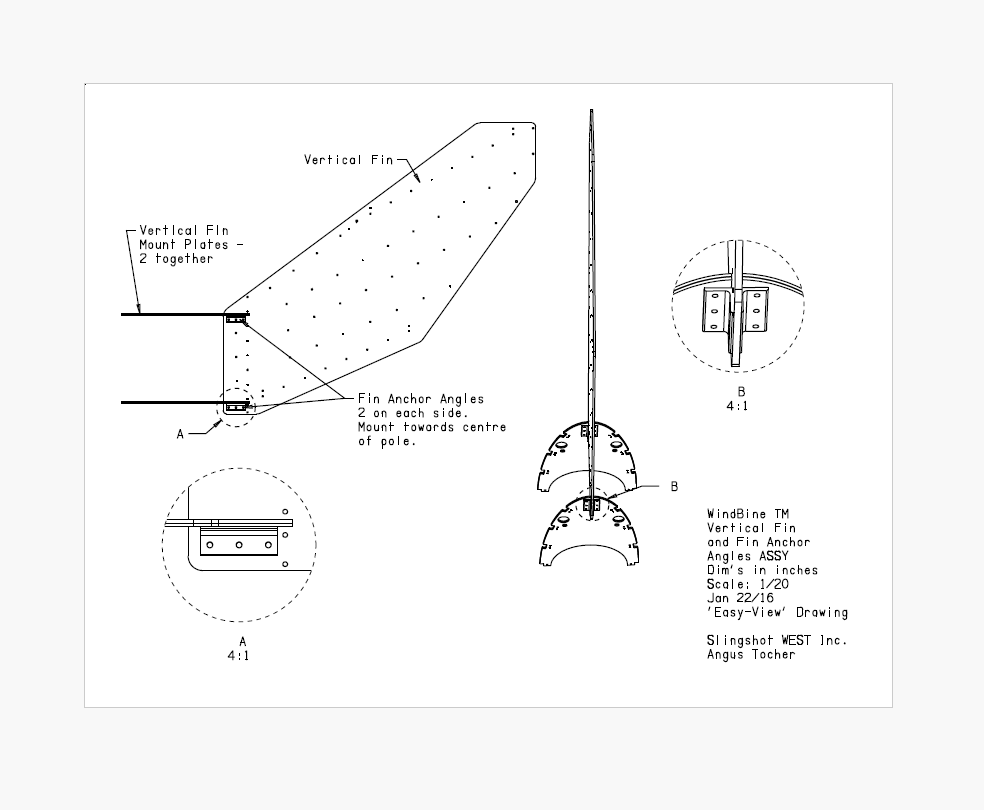

    This WindBine TM Assembly Drawing illustrates the attachment of the two Vertical Fins, top and bottom, to the Vertical Fin Mount Plates with the Fin Anchor Angles!

    Purchase full drawing!

    WindBine TM
    Vertical Fin
    and Fin Anchor
    Angles ASSY
    Dim's in inches
    Scale: 1/20
    Jan 22/16
    'Easy-View' Drawing

    Slingshot WEST Inc.
    Angus Tocher
