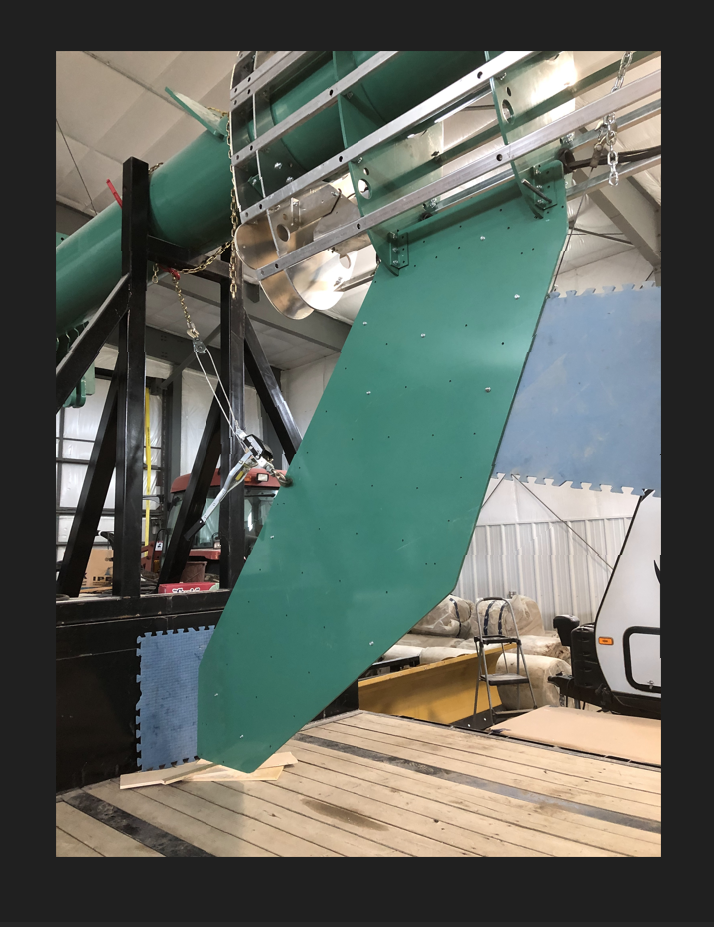

WindBine TM Vertical Fin Right Half - Part #VFINRH

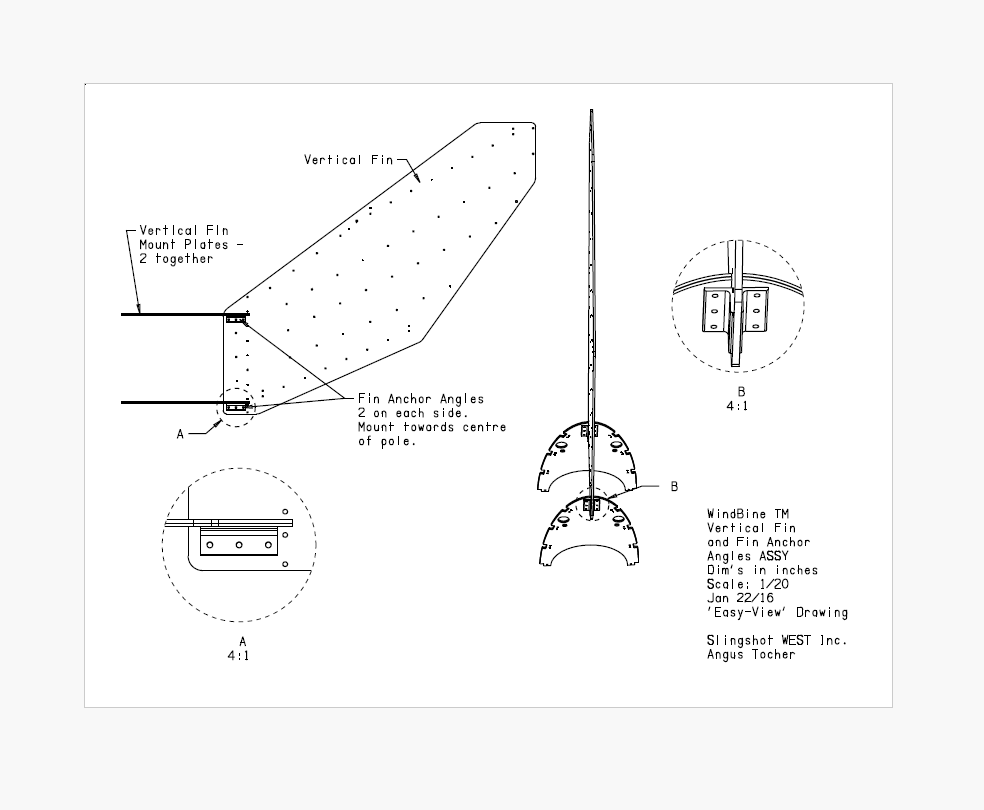

This WindBine TM Part includes the drawing and electronic file for the Vertical Fin Right Half for laser or water jet cut that the Inventor used to build his WindBine TM! There are both right and left hand versions to give a total thickness of 1/2". The Inventor did it this way because when cut, they will warp in opposite directions so that when bolted together, the warps cancelled and the Inventor got very straight and true 1/2" thick Fins!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Vertical Fin Right Half
Part # VFINRH
Material: 5052 aluminum
Finish:  Powder Coat Sage
Thickness: 1/4"
Weight:  80.0 lbs
Pieces required: 2
Scale: 1/15
Dim's in inches
June 8/24
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
